Transmission Cooling Pan Reduces Fluid Temps Up To 50°F Increase Capacity

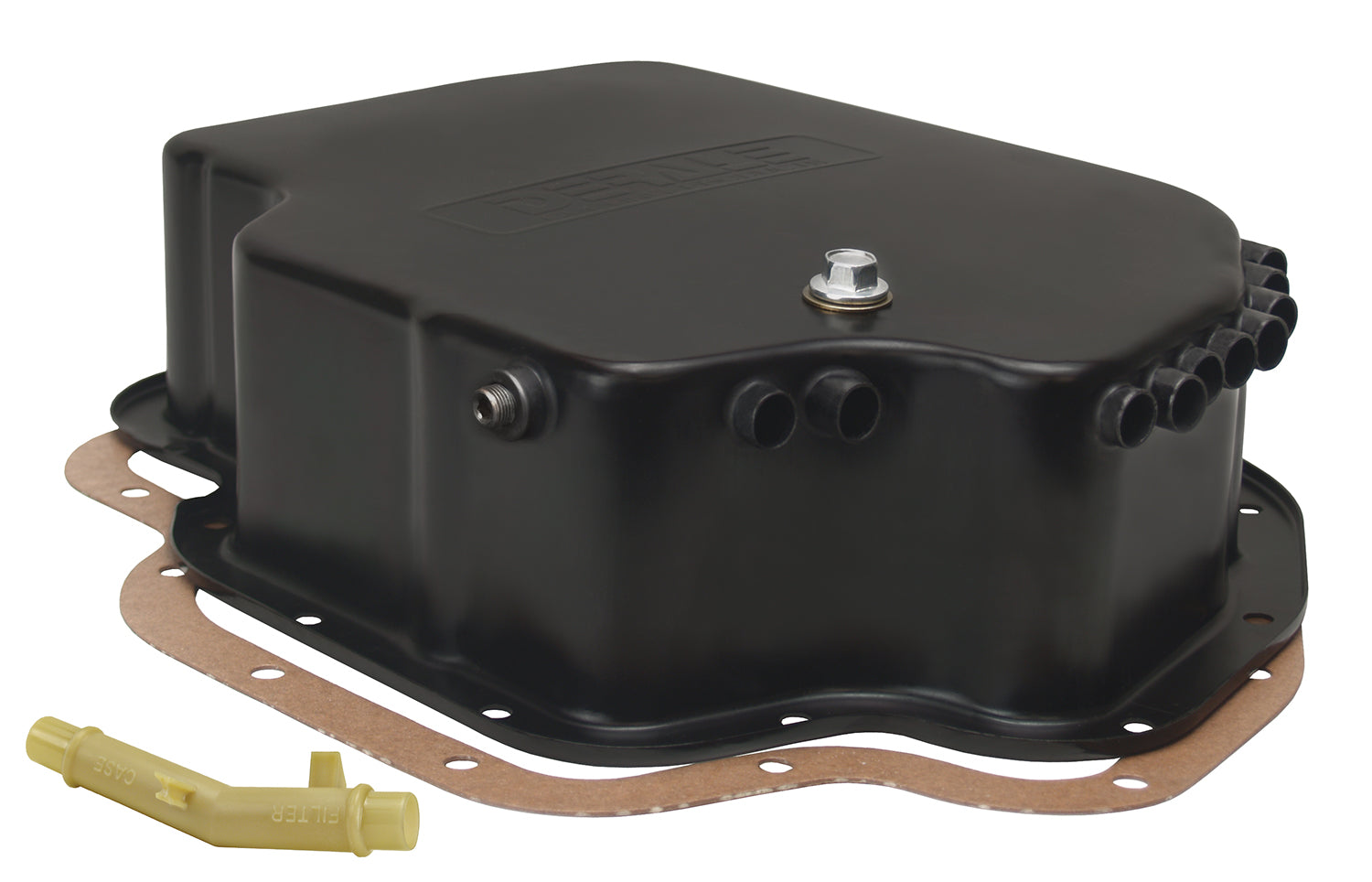

Derale's TH400 Deep Transmission Cooling Pan #14202 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. With brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.

• Transmission Cooling Pan, Reduces Fluid Temps up to 50°F, Increase Capacity

Attributes:

• GTIN: 00083277142024
• Brand Name: Derale
• Color: Black
• Extra capacity from Deep OE pan: 1 qt. 3 oz.
• Extra capacity from Std. OE pan: 3 qts. 8 oz.
• Pan depth: 4
• Temp bung size: 1/8 NPT
• Tube depth: 3-1/16

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 19.25 x 6.75 inches
• Weight: 10.6875 lb
