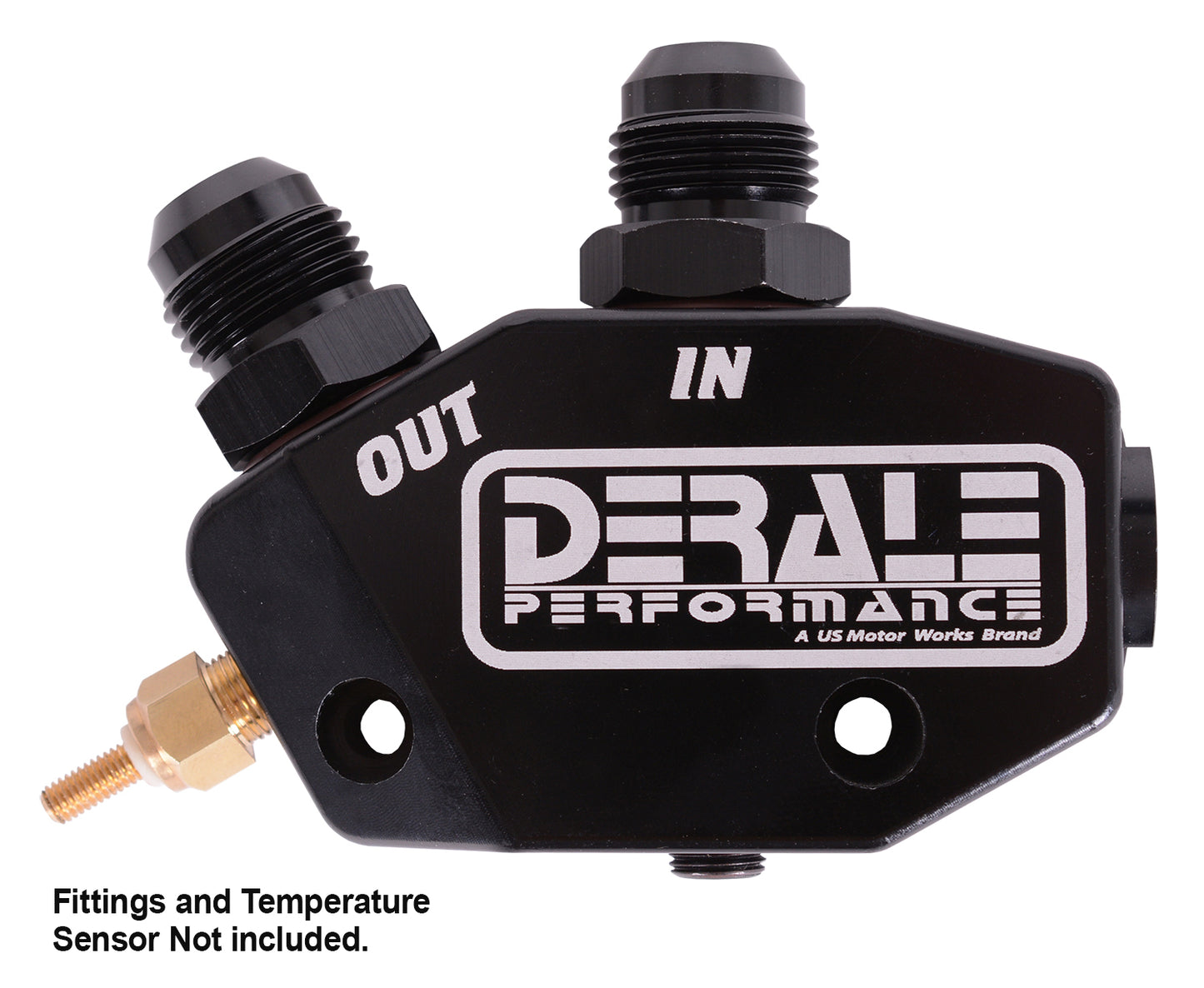

Thermostatically Controlled LS Engine Oil Cooler Bypass Adapter Kit

This Billet Aluminum LS Engine Adapter features a built in 180°F Thermostat to help reduce engine wear and horse power loss. The oil thermostat allows the oil to bypass the cooler until it reaches 180°F at which point the internal thermostatic valve will close and force 100% of the oil through the cooler while maintaining a constant pressure system. This process allows the engine to achieve the ideal operating temperature quicker before passing the oil through the cooler.

• Thermostatically Controlled LS Engine Oil Cooler Bypass Adapter Kit

Attributes:

• Brand Name: Derale
• GTIN: 00083277356216
• 1.: Bypasses cooler until fluid temperature reaches 180°F
• 2.: Provides quicker warm-up temperatures
• 3.: Perfect for cold weather climates
• 4.: Flows up to 20 gallons per minute
• 5.: Rated up to 200 psi
• 6.: Black anodized finish
• 7.: -10AN ORB inlet/outlet ports for maximum flow
• 8.: Activating temperature: 180°F
• 9.: Ultra low profile design
• 10.: Clears most long tube headers for LS swaps
• 11.: 6061 Aluminum Billet
• 12.: Viton o-rings
• 13.: 1/8" NPT Ports

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 4.375 x 7 x 2.25 inches
• Weight: 1.625 lb
