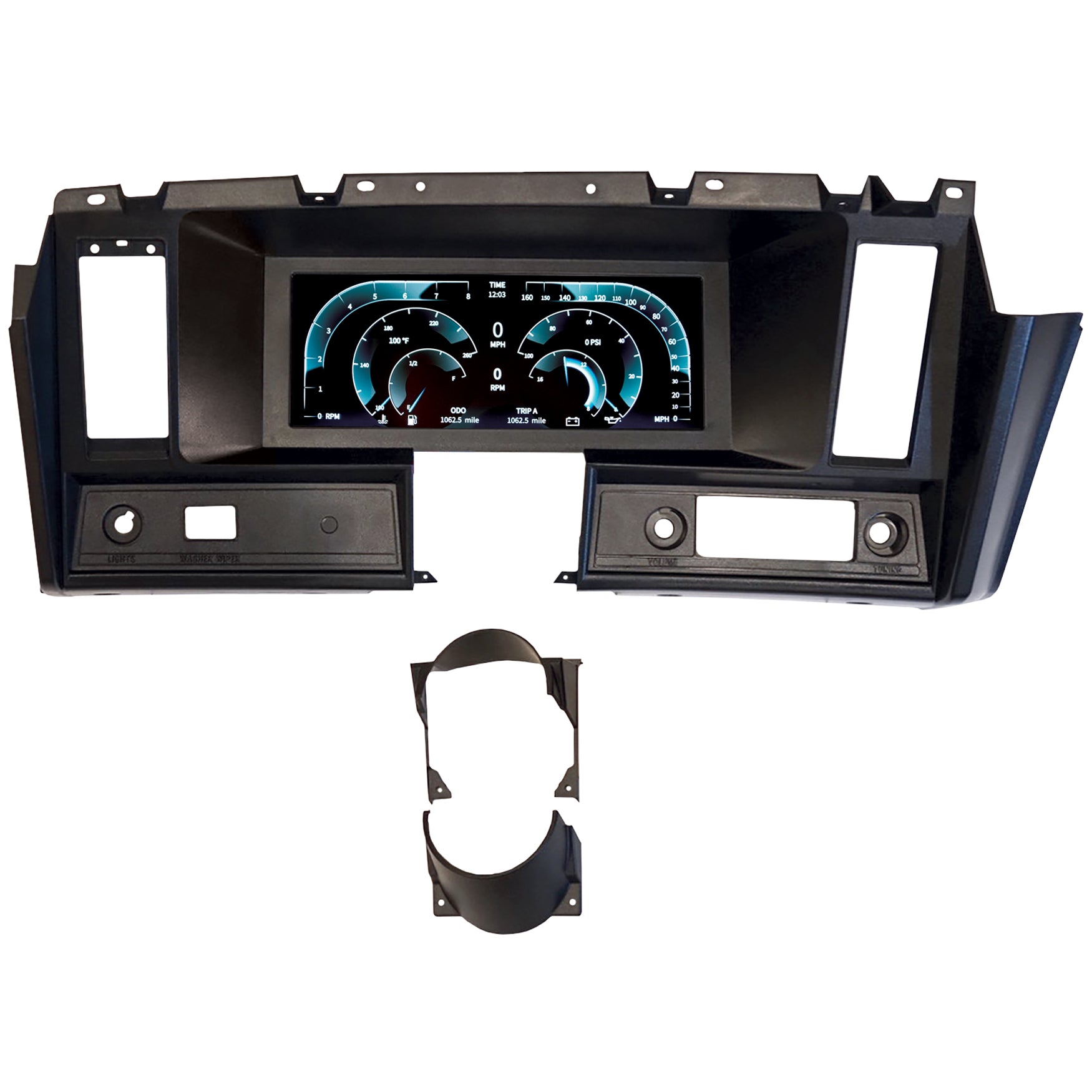

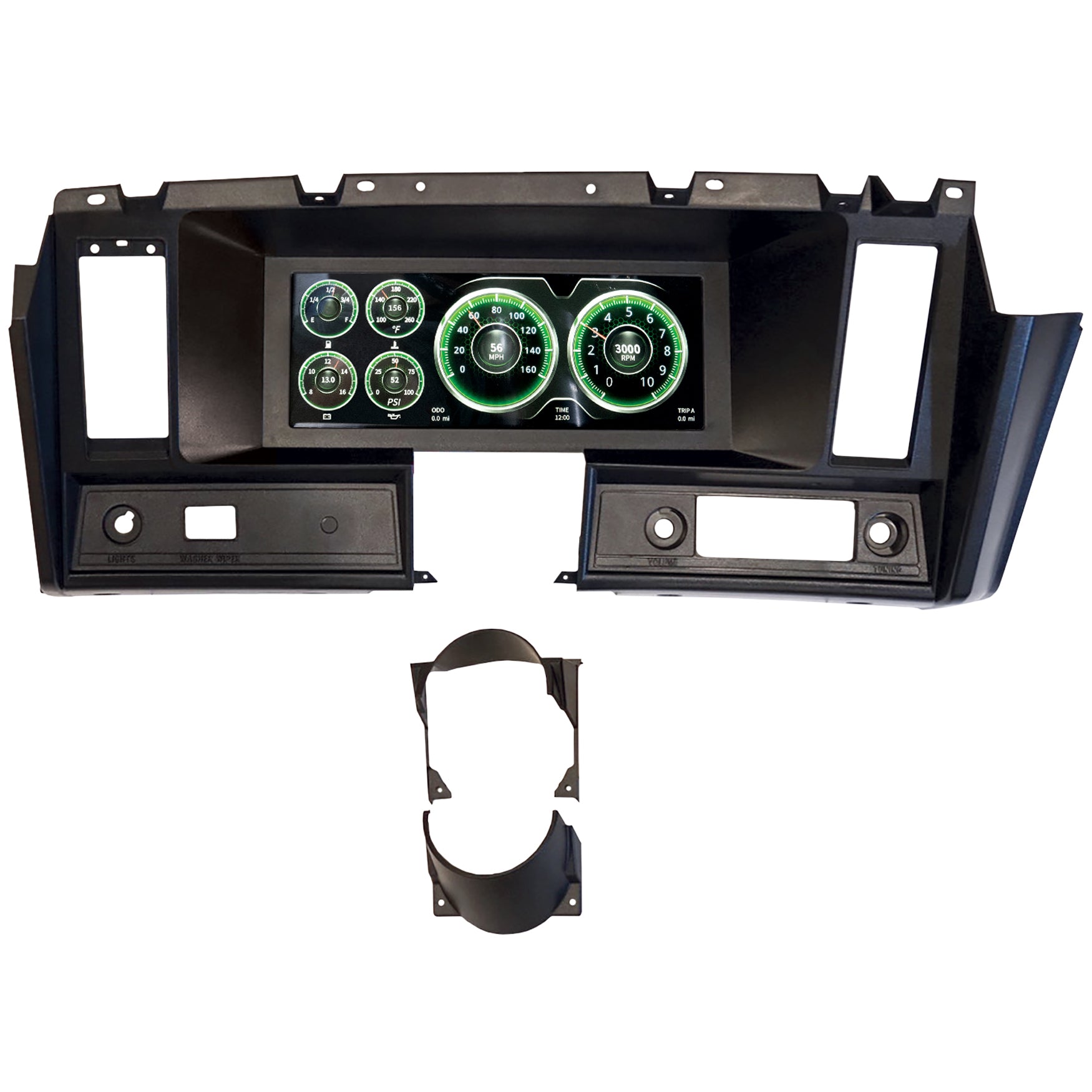

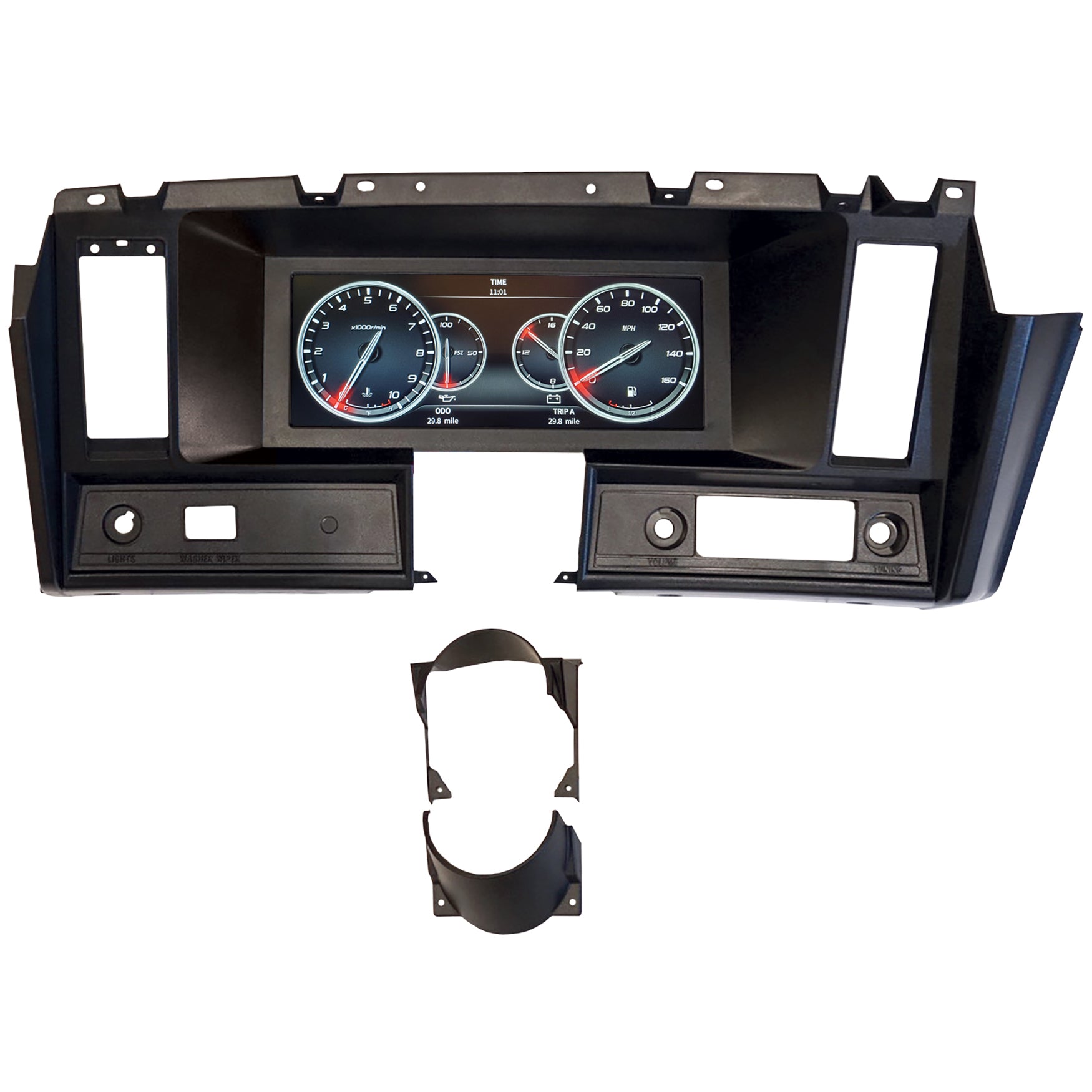

INVISION LCD DASH KIT 69 CAMARO DIRECT FIT DIGITAL DASH

AutoMeter's enormously popular InVision line of products continues to grow with a new application available for the 1969 Chevy Camaro! This complete direct-fit dash system comes with everything needed to monitor the most vital parameters on your vehicle - speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter. All instruments are displayed on a high-resolution and vivid 12.3" LCD screen. With everything you need from integrated turn signals and high beam indicators to a universal wire harness to sending units for temperature and pressure - this is the perfect instrumentation solution for your 69 Camaro!

• Direct-fit instrumentation solution for 1969 Chevrolet Camaro that monitors speedometer, tachometer, water temperature, oil pressure, fuel level, and volts all in a high resolution and colorful display
• 12.3? LCD display with four user selectable screens
• Integrated notifications for high beams and turn signals as well as instrument warnings and a user selectable warning light
• Includes steering column neck sleeves, universal wiring harness, and sending units for water temperature and oil pressure as well as a joystick for dash customization
• Helps identify critical parameters with visual or audible alarms - low fuel level/oil pressure/voltage and high water temperature
• Displays output programmable for imperial or metric measurements
• Requires no cutting, drilling or modification to factory pieces
• Speedometer easily calibrates to OEM or aftermarket vehicle speed sensors and the tachometer is capable of calibrating to many engine types (1-12 cylinders)
• User-selectable fuel level resistance ranges designed for OEM and aftermarket sending units

Attributes:

• Brand Name: AutoMeter
• GTIN: 00046074070082
• Add-On: 5289;5284;5291
• Bezel Color: Black
• Cross Sell: 5289;5284;5291
• Gauge Type: LCD Dash
• Includes Adapter/Fitting: 3/8in NPT and 1/2in NPT adapter fittings
• Includes Mounting Hardware: Brackets Included
• Includes Sensor Unit: 2258, 2242
• Instruction Manual Part Number: 2650-2037-77
• Lens Style: Flat, Clear
• Lighting Color: Multi Color LCD display
• Lighting Type: Digital LCD
• Range: User Configurable
• Related Item: 2160;BEX-1500;EP-800;7000
• Upsell: 6021

Extended Information:

• Country of Origin: CN
• Emissions : CARB Eligible
• Life Cycle Status: Announced

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 32 x 15 inches
• Weight: 14 lb
