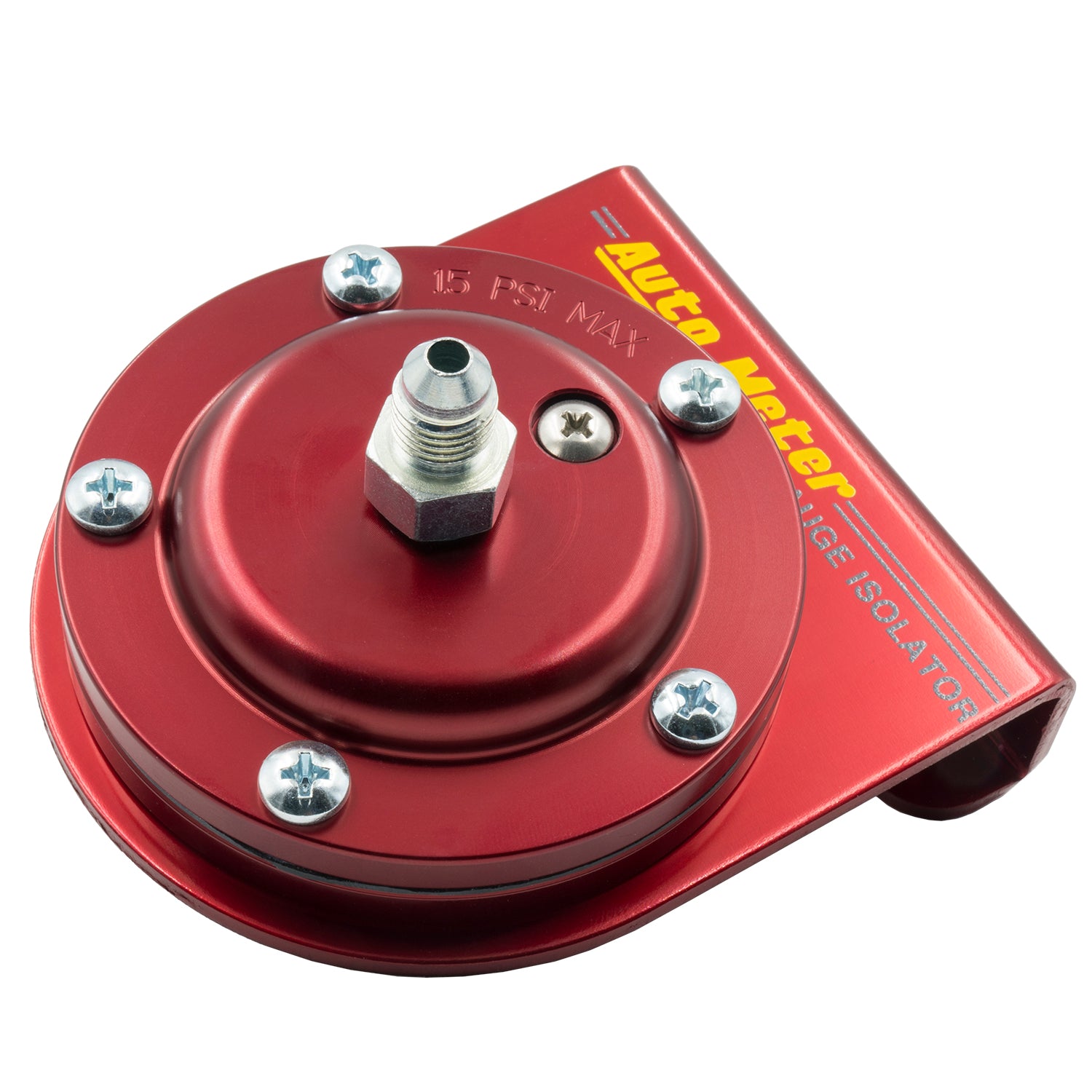

FUEL PRESS ISOLATOR KIT FOR 15 PSI GAUGES RED ANODIZED ALUMINUM -4AN FITTINGS

This Autometer Low Pressure Fuel Isolator Is Required When Running A Carbureted Engine With A Mechanical Fuel Pressure Gauge Mounted In The Vehicles Interior. This Isolator Assembly Mounts Between The Gauge And The Fuel Pressure Port On Your Regulator Or Carb Feed Line And Translates Fuel Pressure Readings To The Gauge Keeping Flammable Materials Out Of The Passenger Compartment. This Red Anodized Aluminum Version From Autometer Is Safe For Competition Use, Nhra Approved, And Includes Fittings To Connect To -4An Braided Stainless Lines As Well As A Handy Mounting Bracket For Installation.

• Safe for use with pump and race gas formulations on carbureted applications with a maximum operating pressure of 15 PSI.
• Not for use with Alcohol, Nitromethane, or Diesel fuels.
• Includes -4AN male fitting connections. Braided stainless line and gauge sold separately.
• Aluminum construction, red anodized finish.

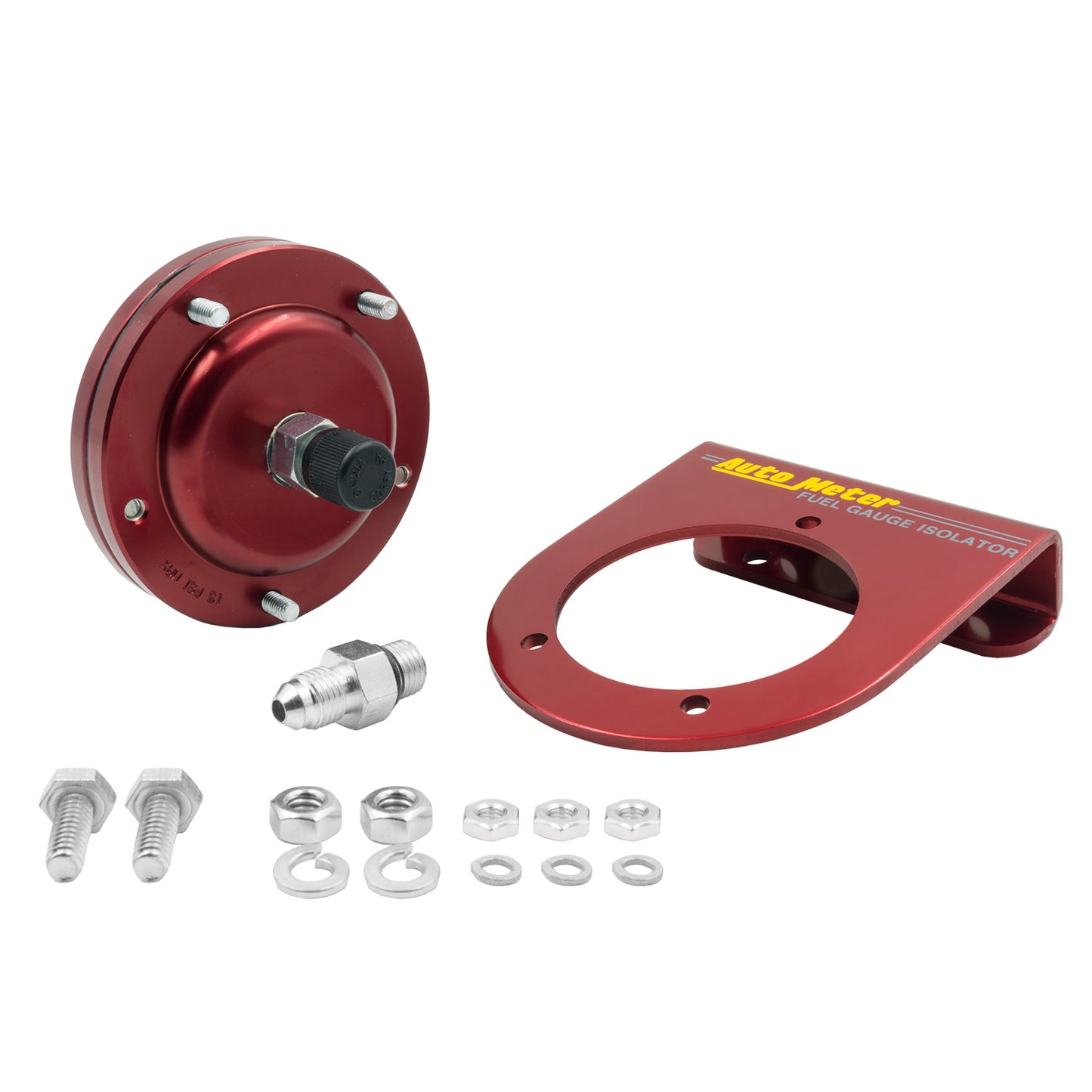

• Includes mounting bracket and hardware.
• Dimensions (including mounting bracket): 3.5" Wide, 2" High (excluding fittings), 4.25" Deep
• For fuel injected applications, please see part #5282.

Attributes:

• Brand Name: AutoMeter
• GTIN: 00046074053764
• Add-On: N/A

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Announced

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.5 x 5.5 x 4.75 inches
• Weight: 1.06 lb
