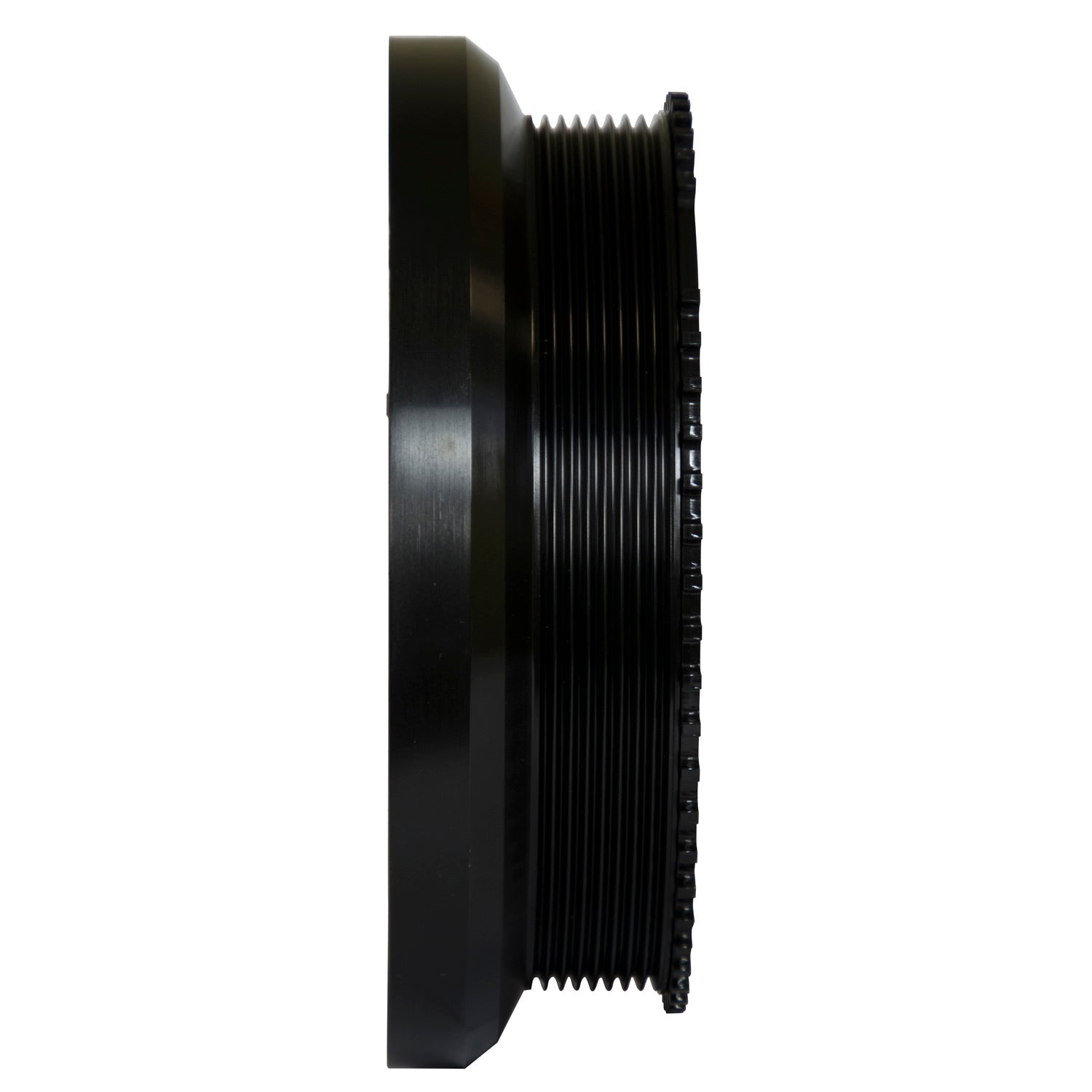

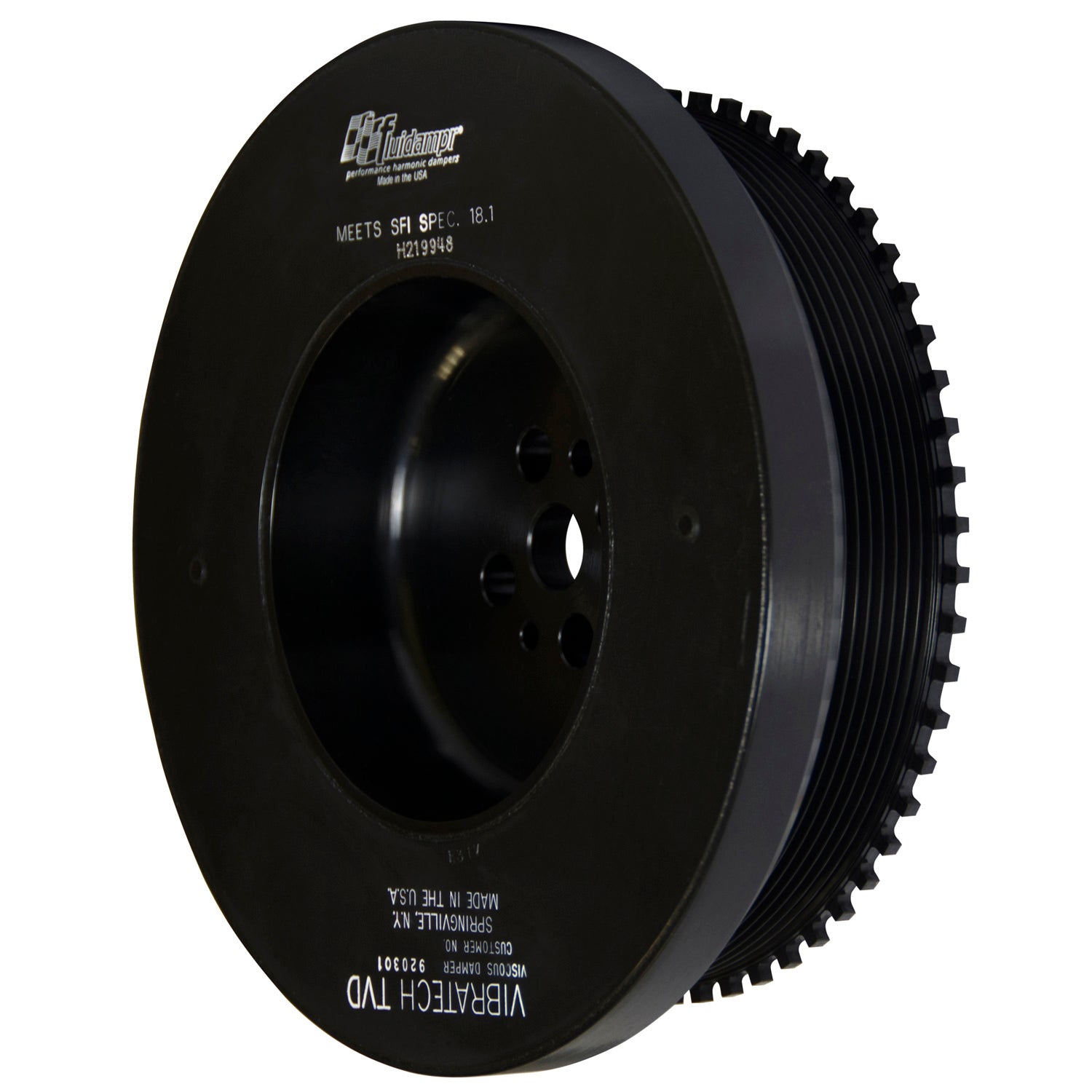

Fluidampr Harmonic Balancer Dodge 2003-2009 - 5.9L Cummins - FLD-920301

Harmonic Balancer, Internal Balance, Steel, Black, Dodge, Cummins Diesel, Each

Serious power requires a serious damper. Protect your truck's engine with the technology preferred by heavy duty diesel OEMs. Superior viscous damper design controls harmful torsional vibration across the entire rpm range. Reduce wear on engine components. Reduce risk of crankshaft failure. Improve timing. Unleash lost torque and horsepower. Competition built precision CNC machined and balanced high-grade steel components. Corrosion resistant black zinc finish with engraved timing marks. No maintenance required. Trusted by leading performance diesel engine builders worldwide. SFI 18.1 certified. Made in USA.

• Broad RPM range protection.
• Reduce risk of crankshaft failure.
• Reduce wear on critical engine parts.
• Unleash lost torque & horsepower.
• No maintenance required.
• Superior durability.
• SFI 18.1 spec. Race proven for over 35 years.
• Made in USA.

Attributes:

• Brand Name: Fluidampr
• GTIN: 00815293001463
• Bolt and Washer Included: No. Recommend Fluidampr #300002 over 3,500rpm; #300007 up to 700hp / 1,250ft-lbs; #300008 above 700hp / 1,250ft-lbs.
• Degree Marking Range: 1 timing mark
• Degree Markings: Engraved
• Depth: 2.462
• Drive Belt Type: Serpentine
• Engine Balance: Internal
• Finish: Black Zinc
• Inside Diameter: NA
• Keyway Type: Drill pin kit #300002 recommended over 3500RPM
• Material: Steel
• Mounting Hole Quantity: 4
• Outside Diameter: 9-1/4"
• Pulley Groove Quantity: 8
• Safety Rating: SFI 18.1
• Weight / Rotating Weight: 23.2 lbs / 15.5 lbs

Extended Information:

• Country of Origin: United States
• Emissions: CARB Eligible
• Life Cycle Status: Available to Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 11.5 in. x 11.5 in. x 6.5 in.
• Weight: 23.2 lb.
