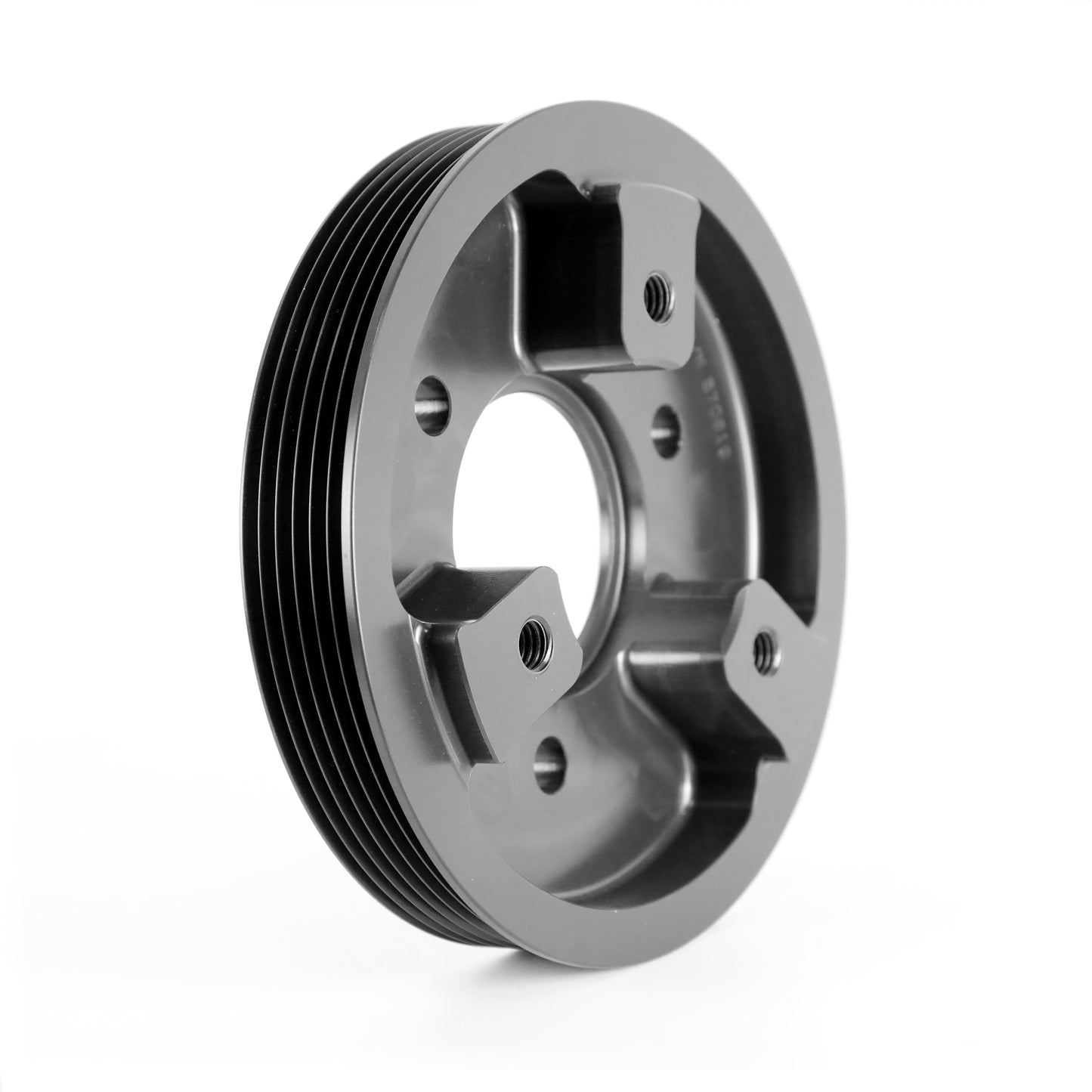

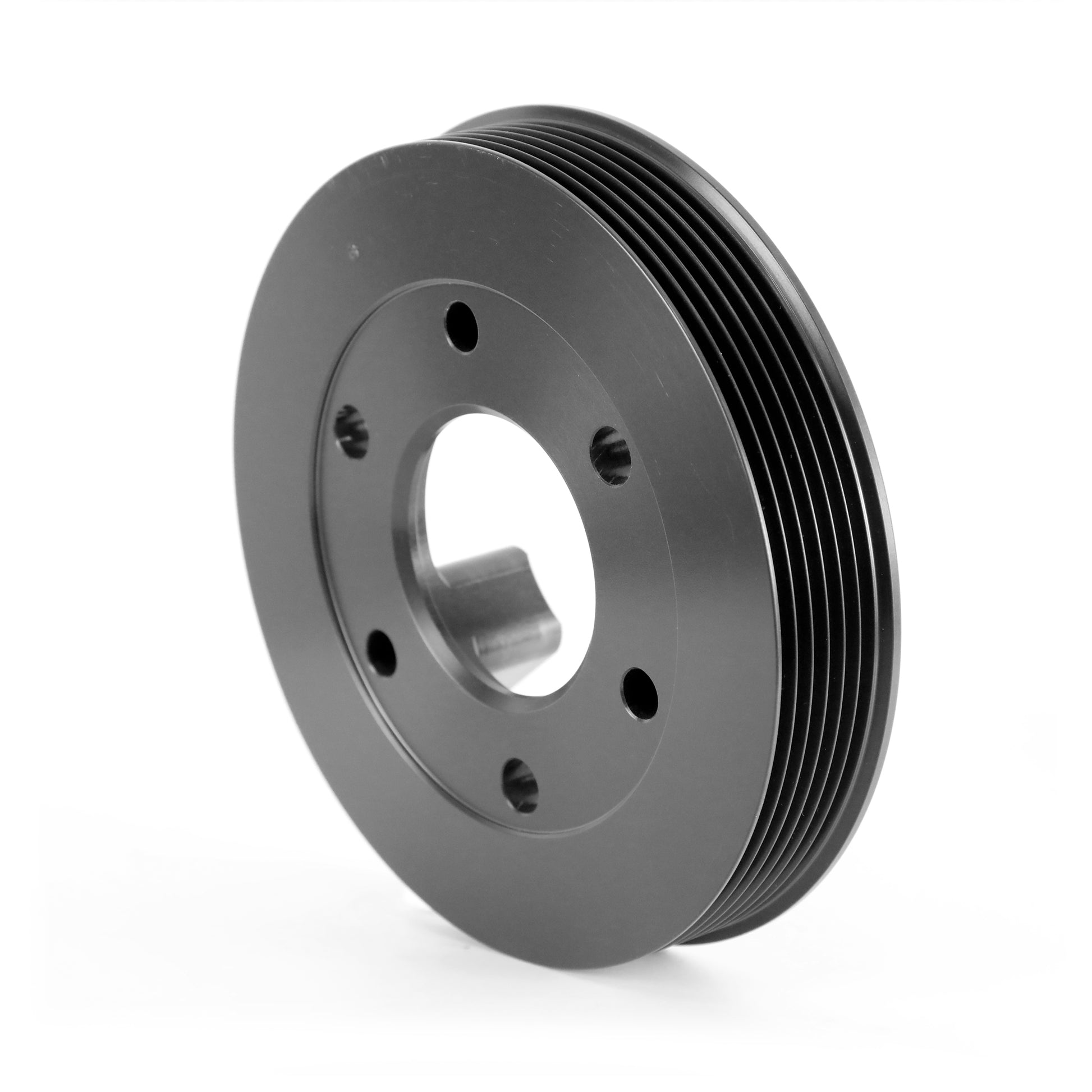

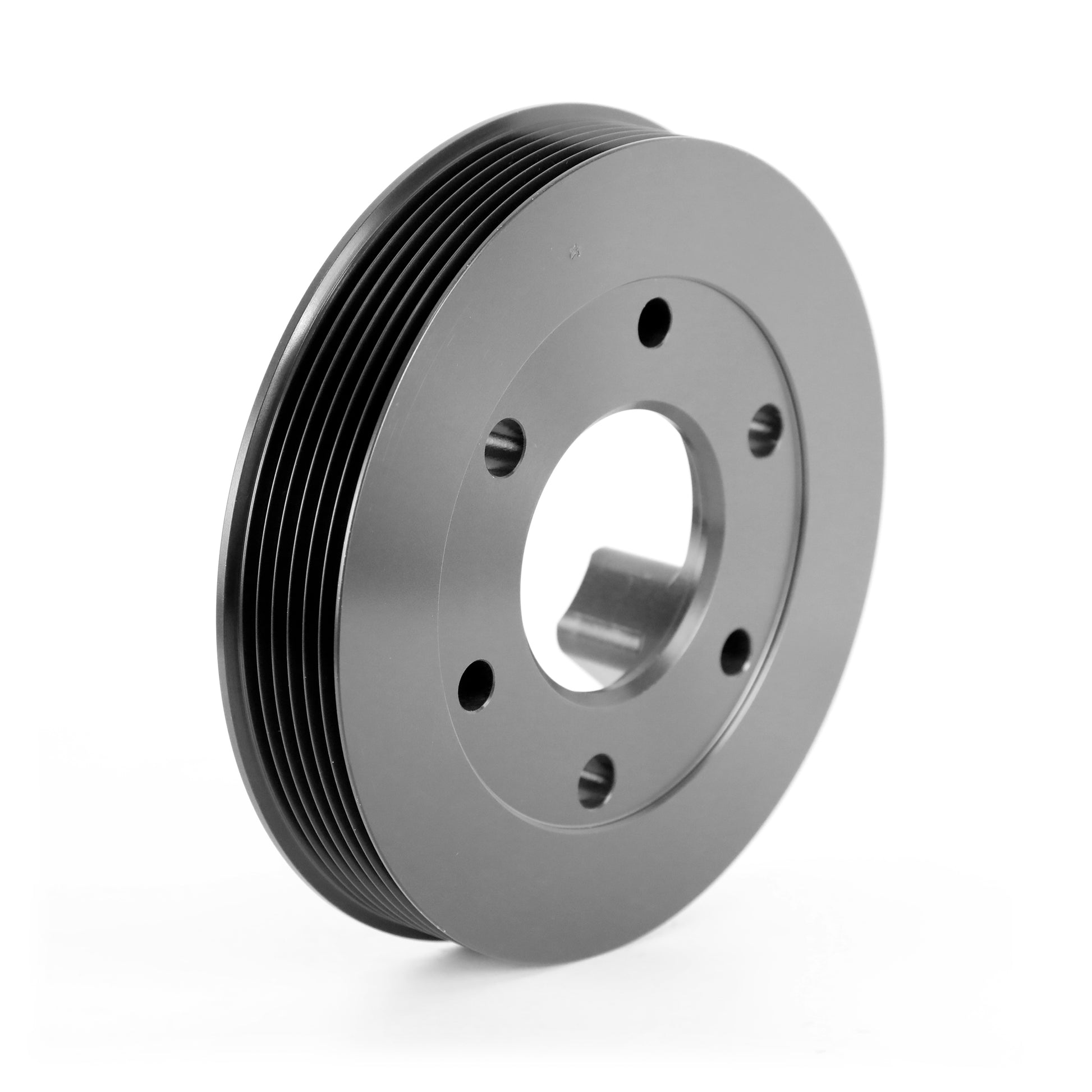

Fluidampr Dry Sump Pulley 6 Rib Toyota 2JZ - FLD-570819

Oil Pump Drive Pulleys, Serpentine, Crankshaft, Toyota, 2JZ, Each

A dry sump is a type of lubrication system used in internal combustion engines, particularly in high-performance and racing vehicles. Unlike a traditional wet sump system, where the oil is stored in a pan at the bottom of the engine, a dry sump system stores the oil in a separate tank.

• Increased Oil Capacity: The oil is stored in an external tank, allowing for a larger volume of oil. This helps keep the oil cooler and reduces the risk of oil starvation.
• Improved Lubrication: Multiple scavenging pumps can be used to ensure that oil is efficiently returned to the tank, providing consistent lubrication to critical engine parts.
• Better Engine Performance: By removing the oil pan, the engine can be mounted lower in the chassis, lowering the vehicle's center of gravity and improving handling and performance.
• Reduced Risk of Oil Surge: In high-speed corners or during hard acceleration and braking, oil surge (where the oil sloshes around) can be a problem in wet sump systems. A dry sump system mitigates this risk by ensuring a steady supply of oil.
• More Efficient Cooling: Since the oil is stored in a separate tank and circulated through the engine, it is more effectively cooled.

Dry sump systems are a common feature in motorsports and high-performance applications where maintaining consistent oil pressure and effective lubrication is crucial.

Changing the size of the pulley on a dry sump system will increase or decrease the amount of oil flow, which isn't an option with an internal pump since it will only move as fast as the crankshaft.

• Pulley only.
• Fits Fluidampr #840801

Attributes:

• Brand Name: Fluidampr
• GTIN: 00815293003887
• Bolt and Washer Included: No
• Depth: 1.304 in.
• Drive Belt Type: Serpentine
• Inside Diameter: 1.98 in.
• Material: Aluminum
• Outside Diameter: 5.9183 in.
• Pulley Groove Quantity: 6
• Weight: 1.4

Extended Information:

• Country of Origin: United States
• Emissions: CARB Eligible
• Life Cycle Status: Available to Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 10.5 in. x 10.5 in. x 4.5 in.
• Weight: 1.4 lb.
