Fluidampr Harmonic Balancer Installation Kit 1989-2018 6.7L / 5.9L Cummins - FLD-300008

Installation Kit, 1989-2018 5.9L and 6.7L Cummins, Harmonic Balancer, 8740 Chromoly, Black Oxide, Up To 700HP/1,250 lb.-ft Torque, Kit

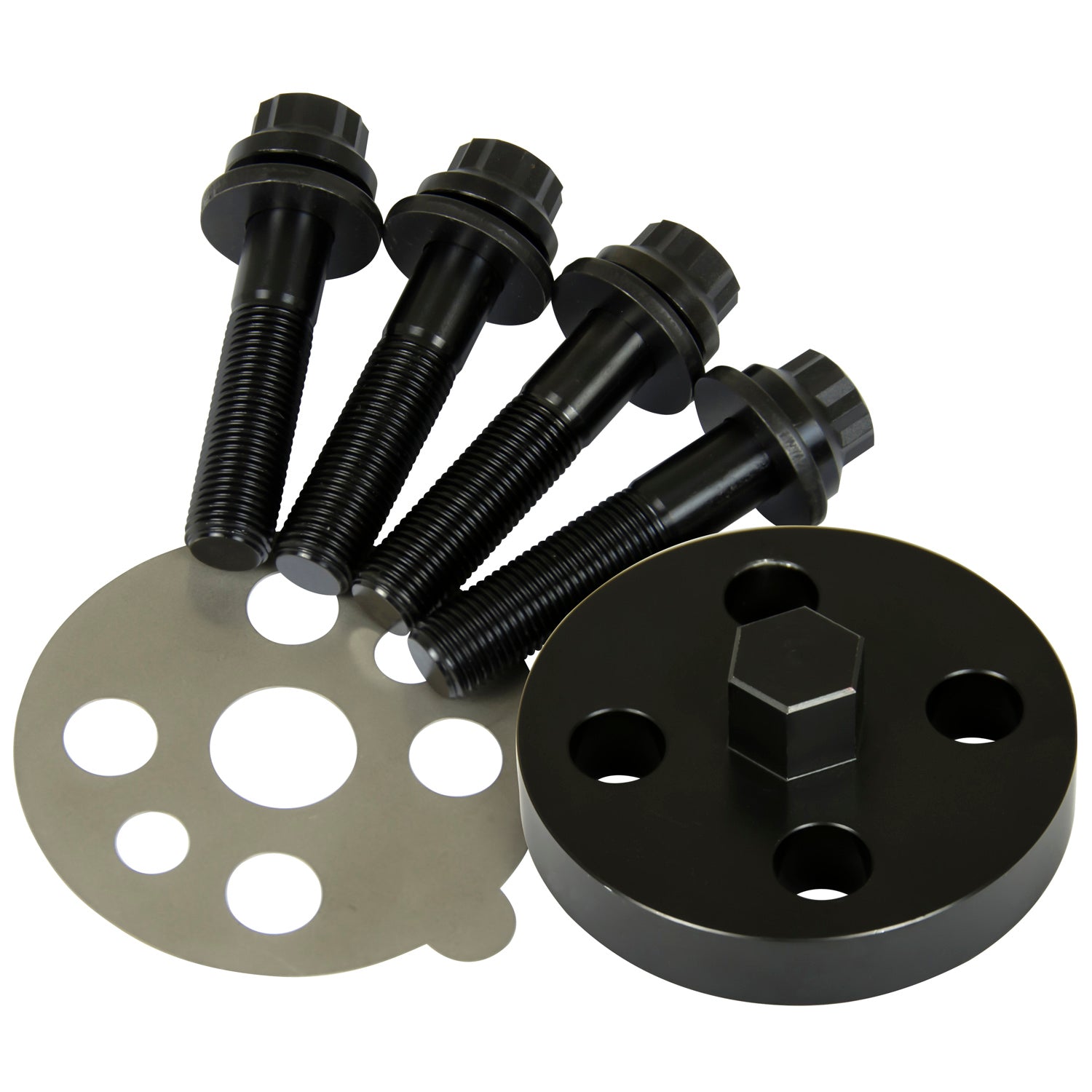

For Cummins performance engine builds above 700hp / 1,250 ft-lbs. torque 1989-2018 5.9L and 6.7L Fluidampr recommends damper installation with the Full Power Kit for secure mounting. Kit features textured finished torque plate with 5/8 hex head for barring engine, diamond impregnated friction washer, and heat-treated high strength bolts from ARP. Use in conjunction with Fluidampr Cummins Drill Pin Kit (P/N 300002) for applications above 3,500rpm.

• Secure mounting.
• High quality hardware.

Attributes:

• Brand Name: Fluidampr
• GTIN: 00815293003351
• Friction Washer Coating: Diamondize
• Friction Washer Depth: .0080
• Friction Washer Material: Spring steel
• Socket Size: 14mm 12pt
• Torque Plate Depth: .50
• Torque Plate Diameter: 2.75

Extended Information:

• Country of Origin: United States
• Emissions: CARB Eligible
• Life Cycle Status: Available to Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 9 in. x 7 in. x 3 in.
• Weight: 2 lb.
