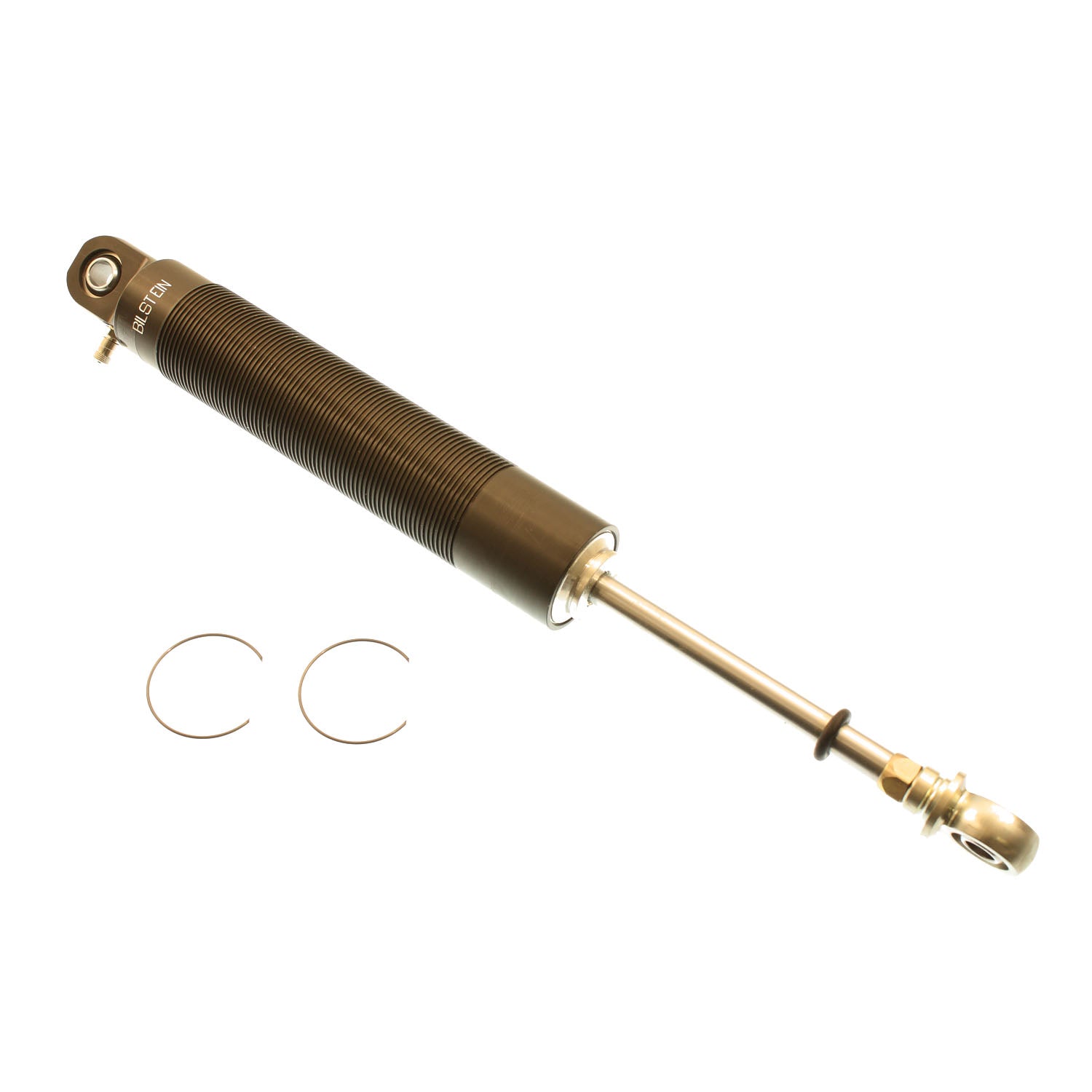

Bilstein Shock Absorbers

Bilstein ASN Series shock absorbers are designed for motorsports applications and provide the user with the option to rebuild them. They are offered in multiple lengths and feature a one piece hard anodized body for simple disassembly and repair. ASN Series shock absorbers are ideal for racers looking for a lightweight rebuildable design with superior performance capabilities.

• 46mm aluminum threaded body monotube design ensures consistent, fade-free performance in all conditions
• Hard anodized coating reduces friction while increasing durability and strength
• Easy disassembly for rapid repair or valving changes

Attributes:

• Brand Name: Bilstein
• GTIN: 00790832512672
• Boot Included: No
• Collapsed Length (IN): 13.35
• Collapsed Length (MM): 339.0
• Compression: Linear
• Extended Length (IN): 20.23
• Extended Length (MM): 513.8
• Finish: Clear Anodized
• Internal Design: Monotube
• Lower Mount Type: Eye 12.7mm
• PartType: Shocks / Struts
• Rebound: Linear
• Segment: Motorsports
• Series: ASN Series
• Spring Seat Included: No
• Upper Mount Type: Eye 12.7mm

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 2.7500 x 2.5000 inches
• Weight: 2.5000 POUNDS

PDF:
