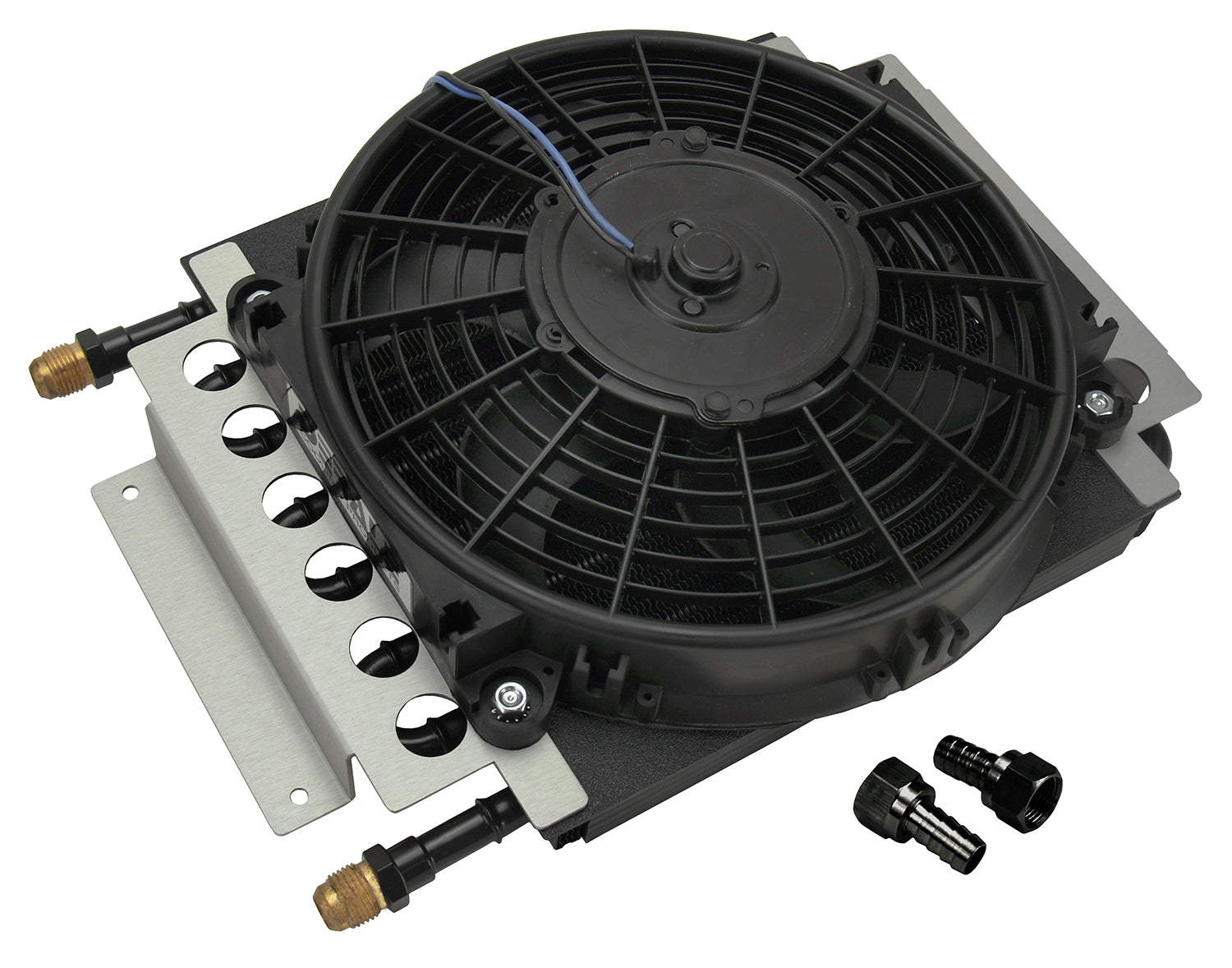

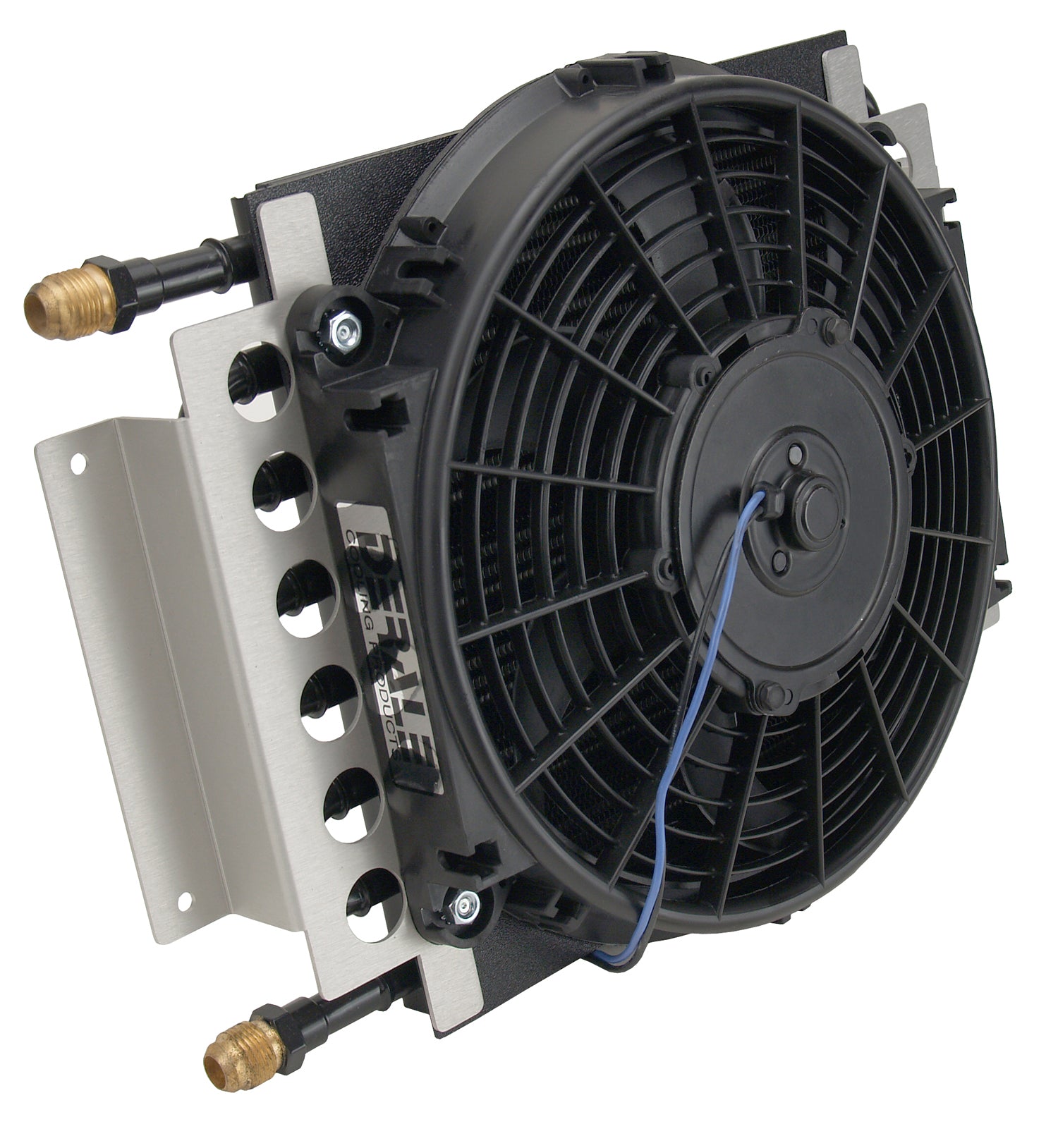

8 Pass Electra-Cool Remote Cooler -8AN Inlets

With its own air supply, the popular Electra-Cool remote fluid cooler can literally be mounted almost anywhere, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 8-pass tube and fin cooler coupled with a Tornado fan and aluminum brackets, built with -8AN male fittings and includes 2 each -8AN x 1/2" barb fittings. With the large -8AN fittings this cooler was designed primarily for engine oil applications, but also can be used for medium duty transmission or fuel cooling. Made in the USA.

• 8 Pass Electra-Cool Remote Cooler, -8AN Inlets

Attributes:

• Brand Name: Derale
• GTIN: 00083277158209
• Airflow: Puller (reversible)
• Amp draw: 5.3
• Barb size: 1/2
• CFM: 650
• Color: Black
• Cooler fluid capacity: 9.8
• Cooler style: 8 pass Tube & Fin
• Depth: 4
• Fan size: 10
• Height: 11-1/2
• Inlet dim: 8-3/4
• Inlet size: -8AN
• Mounting: 14-3/4 x 5-1/4
• Width: 15-3/4

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 19.25 x 6.75 inches
• Weight: 7 lb
