5 PC. GAUGE KIT 3-1/8 In. & 2-1/16 In. ELEC. SPEEDOMETER FORD MASTERPIECE

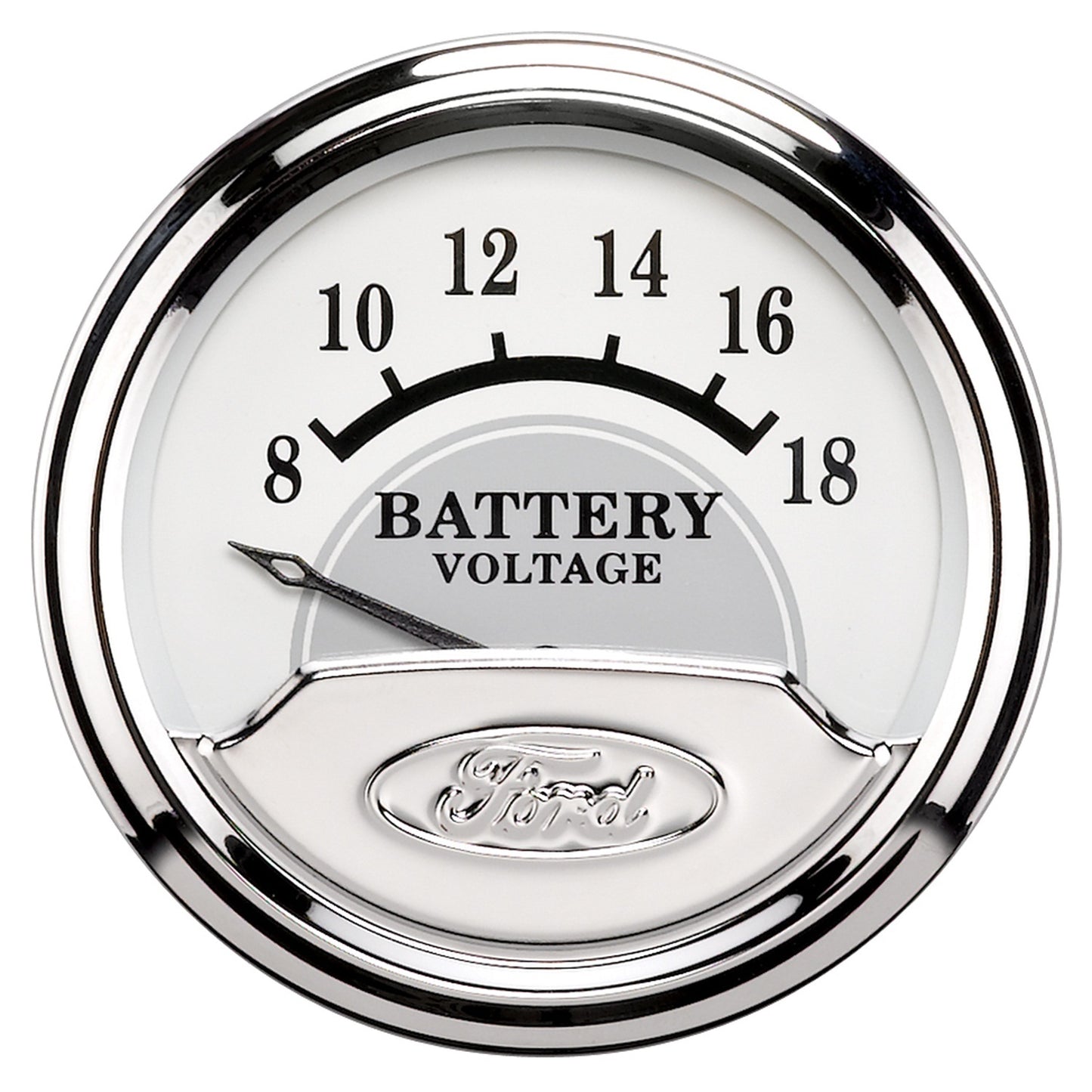

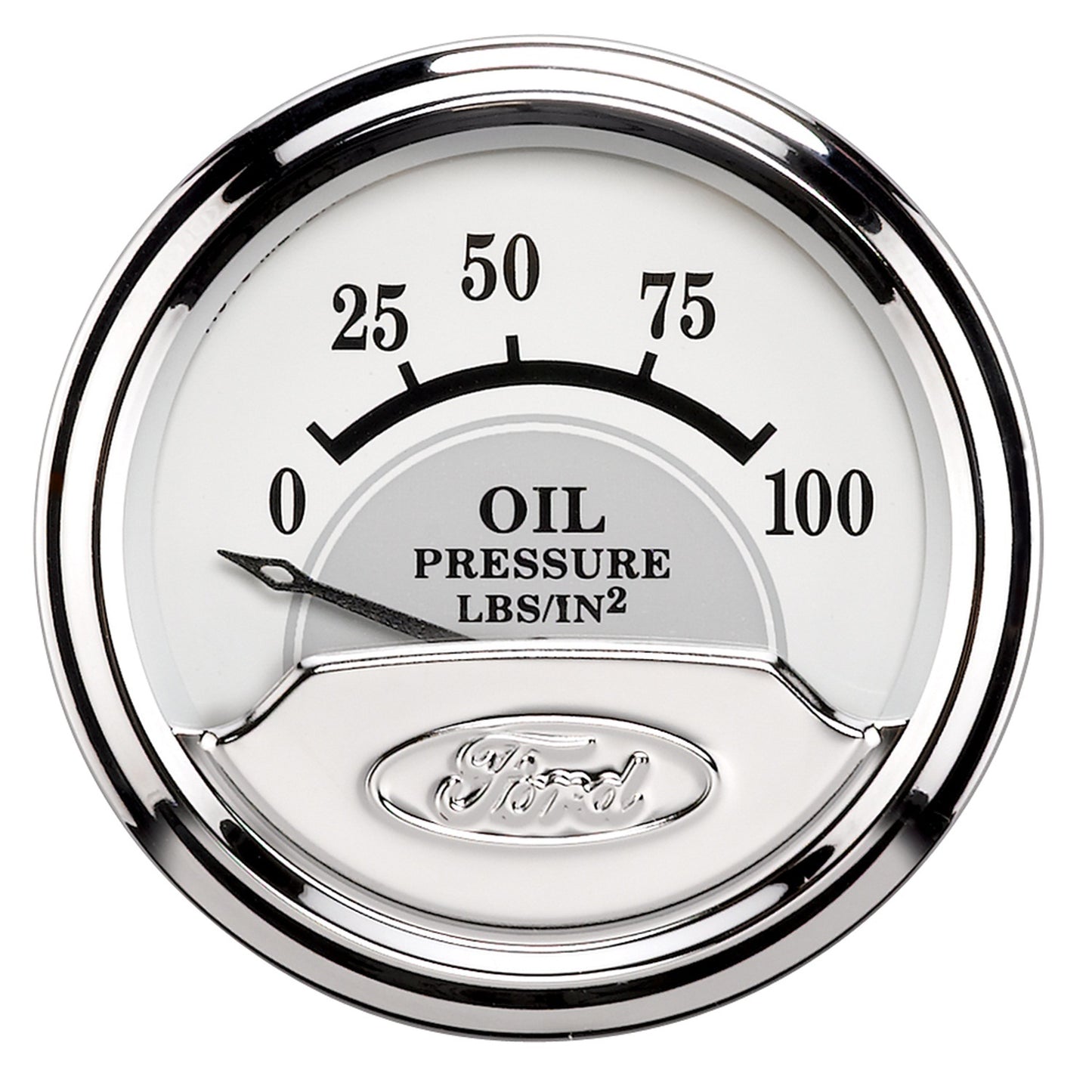

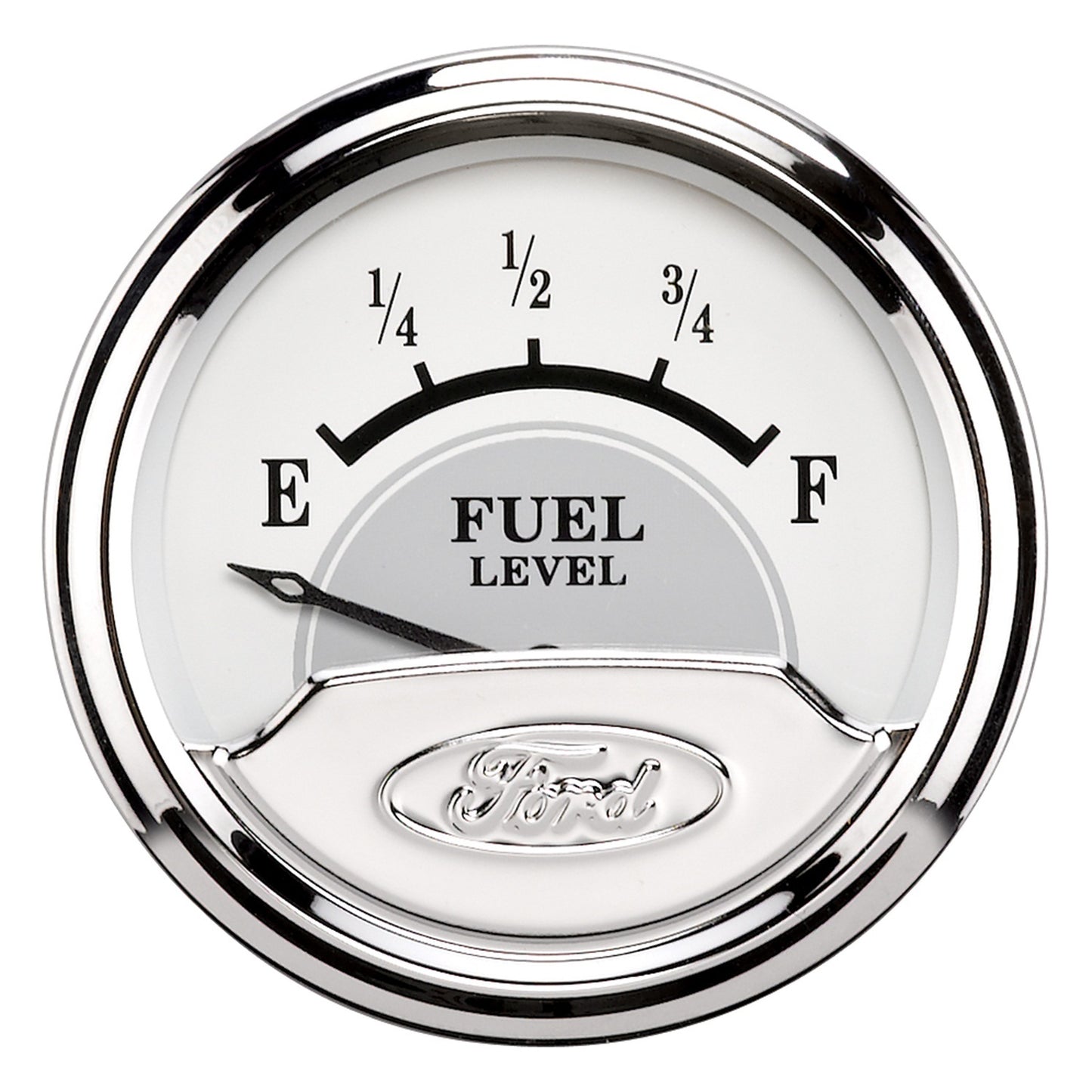

AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable. Officially licensed Ford product.

• Traditional incandescent lighting illuminates around the perimeter of the dial
• sending unit adapters (1/4" , 3/8" , and 1/2" NPT adapters)
• bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
• Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
• Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
• Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
• Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
• Kit includes fuel level sender (240E/33F)
• oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD)

Attributes:

• Brand Name: AutoMeter
• GTIN: 00046074140150
• Add-On: N/A

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 8.75 x 4.5 x 17.5 inches
• Weight: 4.65 lb
