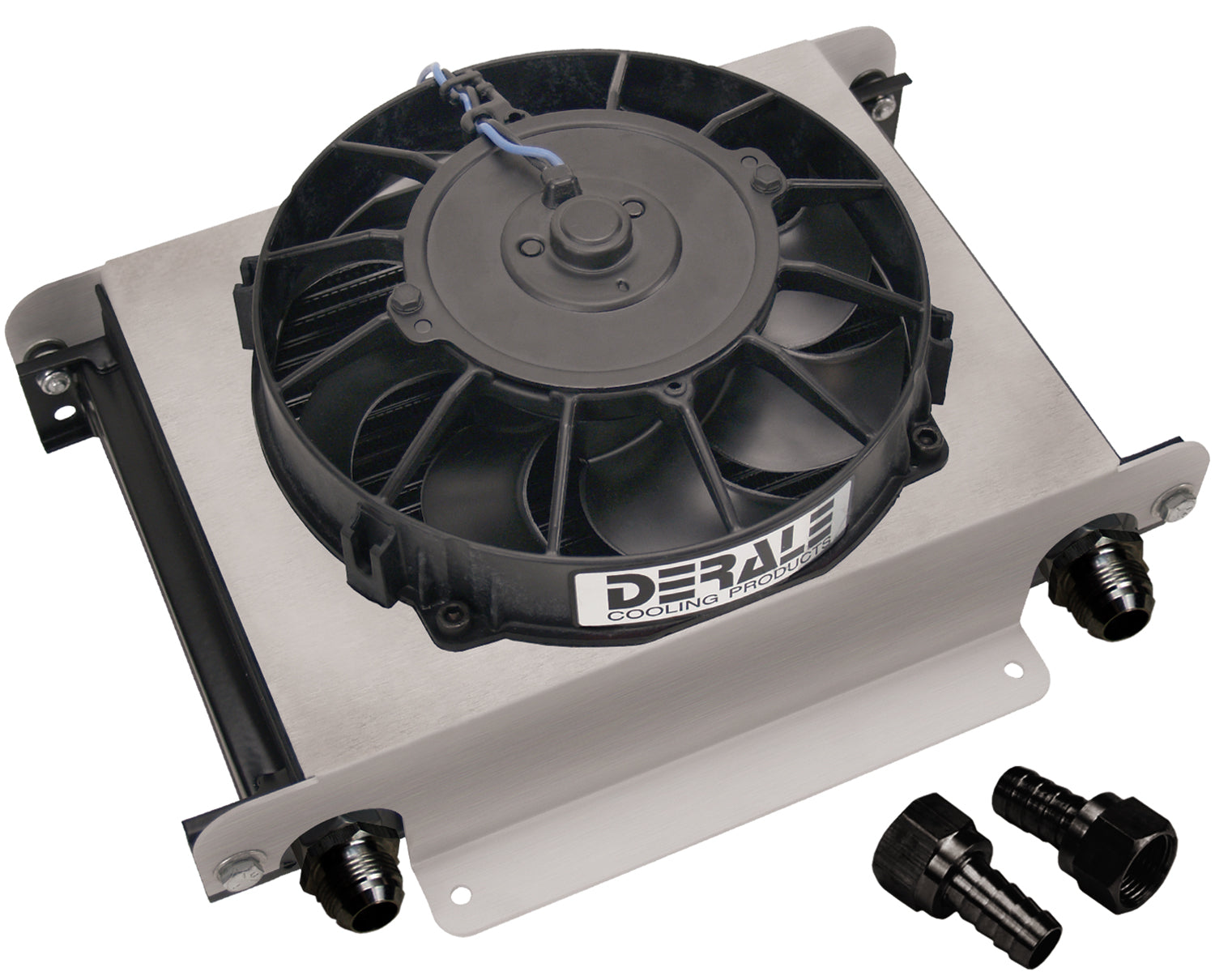

25 Row Hyper-Cool Remote Fluid Cooler -10AN

Equipped with our top-of-the-line 25-row stack plate cooler, the Hyper-Cool remote fluid cooler can literally be mounted almost anywhere, making it a popular addition for serious performance cars, hot rods, muscle cars and trucks. With an all-aluminum, oven-brazed Stack Plate cooler coupled with a Tornado fan and aluminum shroud, it comes with aluminum -10AN male fittings and -10AN x 1/2" barb adapters to provide serious cooling in a small package. This cooler was designed primarily for engine oil applications, but also can be used for heavy-duty transmission or fuel cooling. The Hyper-Cool is perfect for extreme duty applications.

• 25 Row Hyper-Cool Remote Fluid Cooler, -10AN

Attributes:

• Brand Name: Derale
• GTIN: 00083277158650
• Amp draw: 4.8
• BTU's Per Hour: 46000
• Barb size: 1/2
• CFM: 500
• Color: Black
• Cooler style: Stacked Plate
• Depth: 5-5/8
• Fan size: 8
• Height: 10
• Inlet dim: 10
• Inlet size: -10AN o-ring female (7/8"-14) x -10AN male
• Mounting: 7-1/2 x 9
• Width: 13

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12 x 17.5 x 6.625 inches
• Weight: 6.4375 lb
