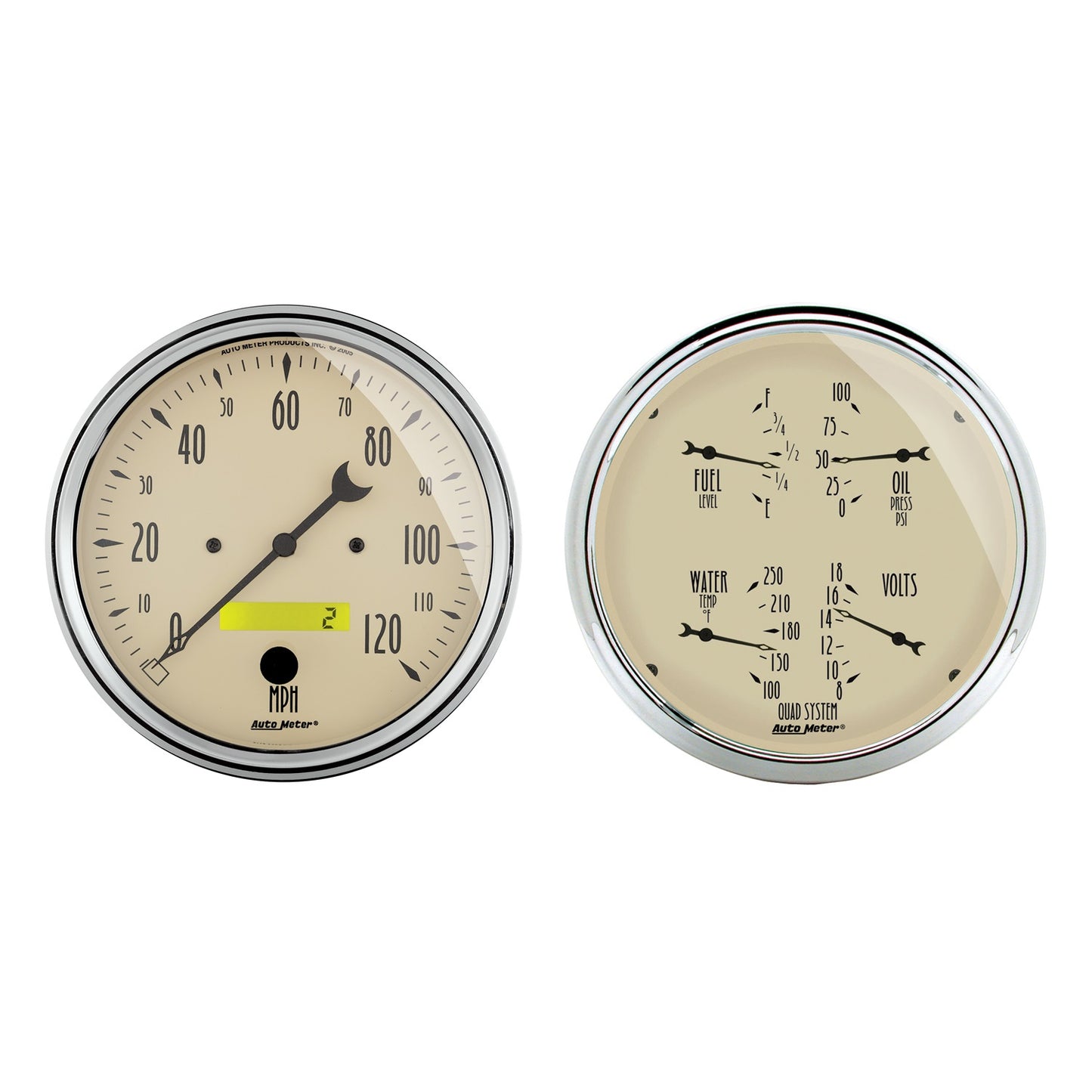

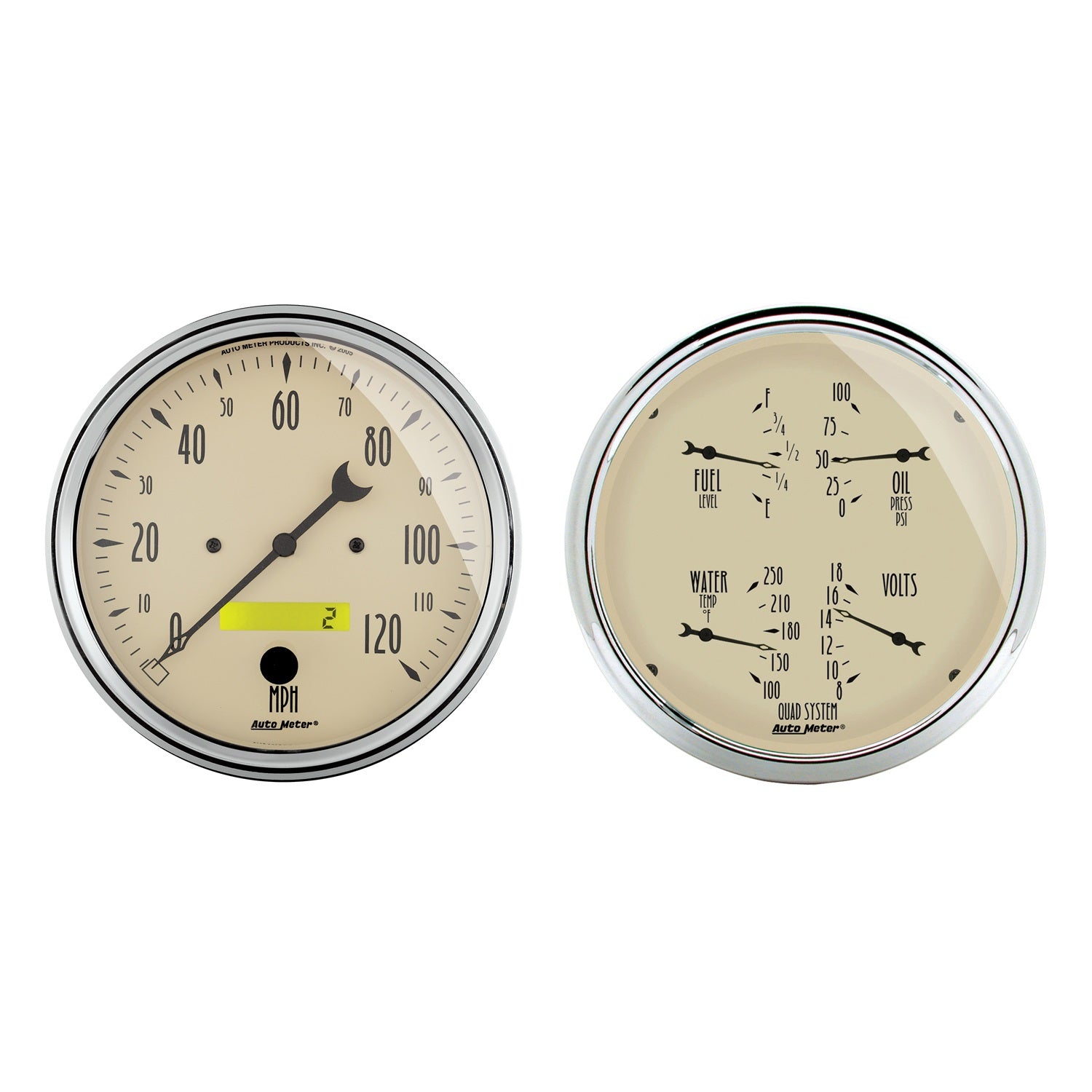

AutoMeter 2 Pc. Gauge Kit 5 in. Quad & Speedometer 240-33 Ω Antique Beige - ATM-1803

Gauge Kit, Analog, Antique Beige, Fuel Level, Volts, Oil Press, Water Temp., 5 in., Speedometer, Kit

Maximize your dashboard efficiency with the AutoMeter Quad Gauge! When space is at a premium, this sleek gauge provides a clean, organized look while delivering top-notch performance. Each function boasts individual AutoMeter air core meter movements, ensuring unmatched accuracy and durability for even the toughest applications.

This powerful gauge comes equipped with a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter covers a range from 8-18v on negative ground electrical systems, and the fuel level resistance spans from 240 ohms (empty) to 33 ohms (full), compatible with AutoMeter’s 3262 fuel level sender.

Upgrade your ride with the AutoMeter Quad Gauge and experience the ultimate combination of style and performance!

• Traditional incandescent lighting illuminates around the perimeter of the dial
• Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD), sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
• AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
• Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
• Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
• Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
• 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
• Domed Lens

Ships With

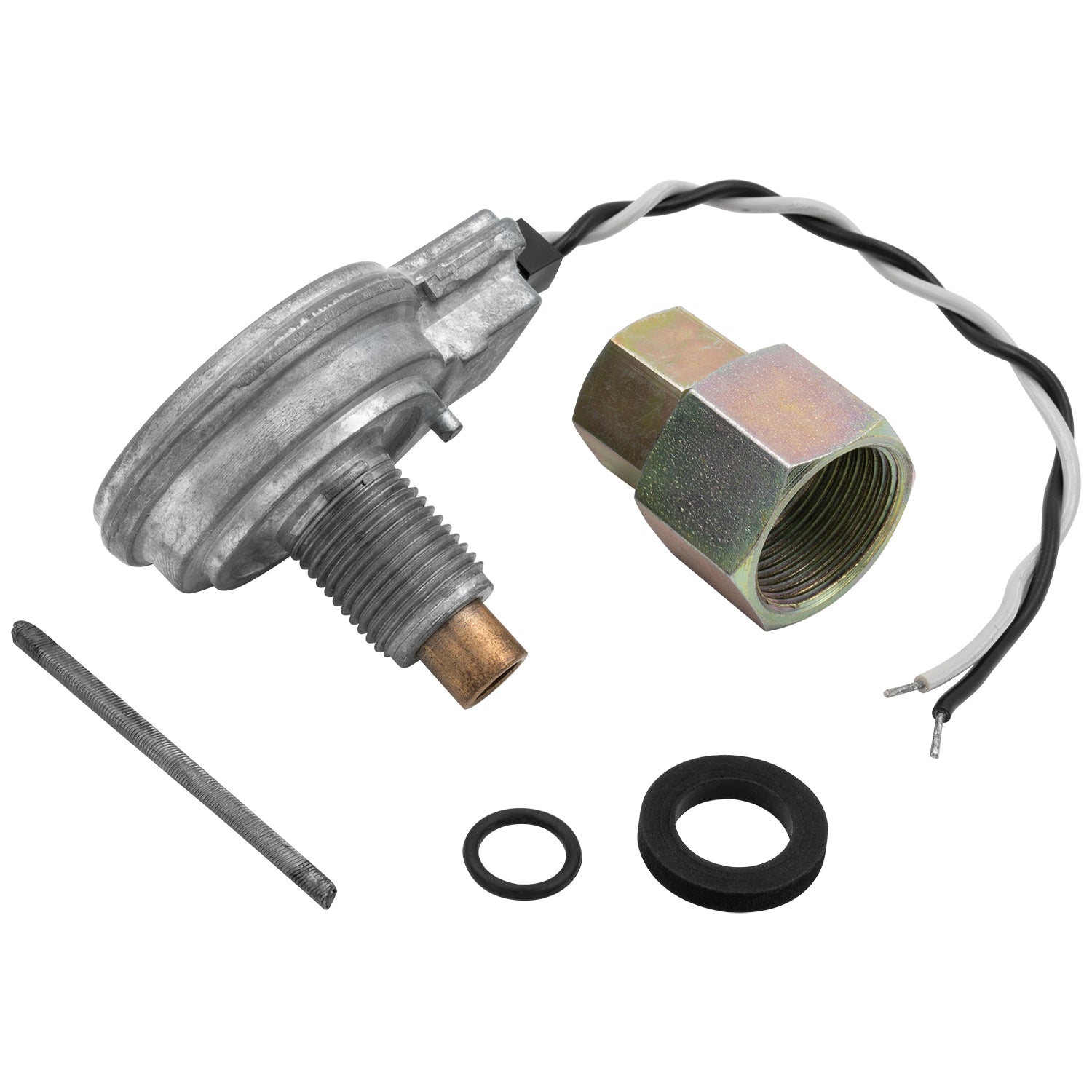

• Includes Sending Unit: Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - 5293 VSS Sensor
• 3/8" NPT and 1/2" NPT adapter fittings
• Brackets Included

California Residents: Prop 65 WARNING

Attributes:

• Brand Name: AutoMeter
• GTIN: 00046074018039
• Add-On: N/A

Extended Information:

• Country of Origin: United States
• Emissions: 1
• Life Cycle Status: Available to order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 17.5 x 8.75 x 4.5 inches
• Weight: 4.5 lb.
