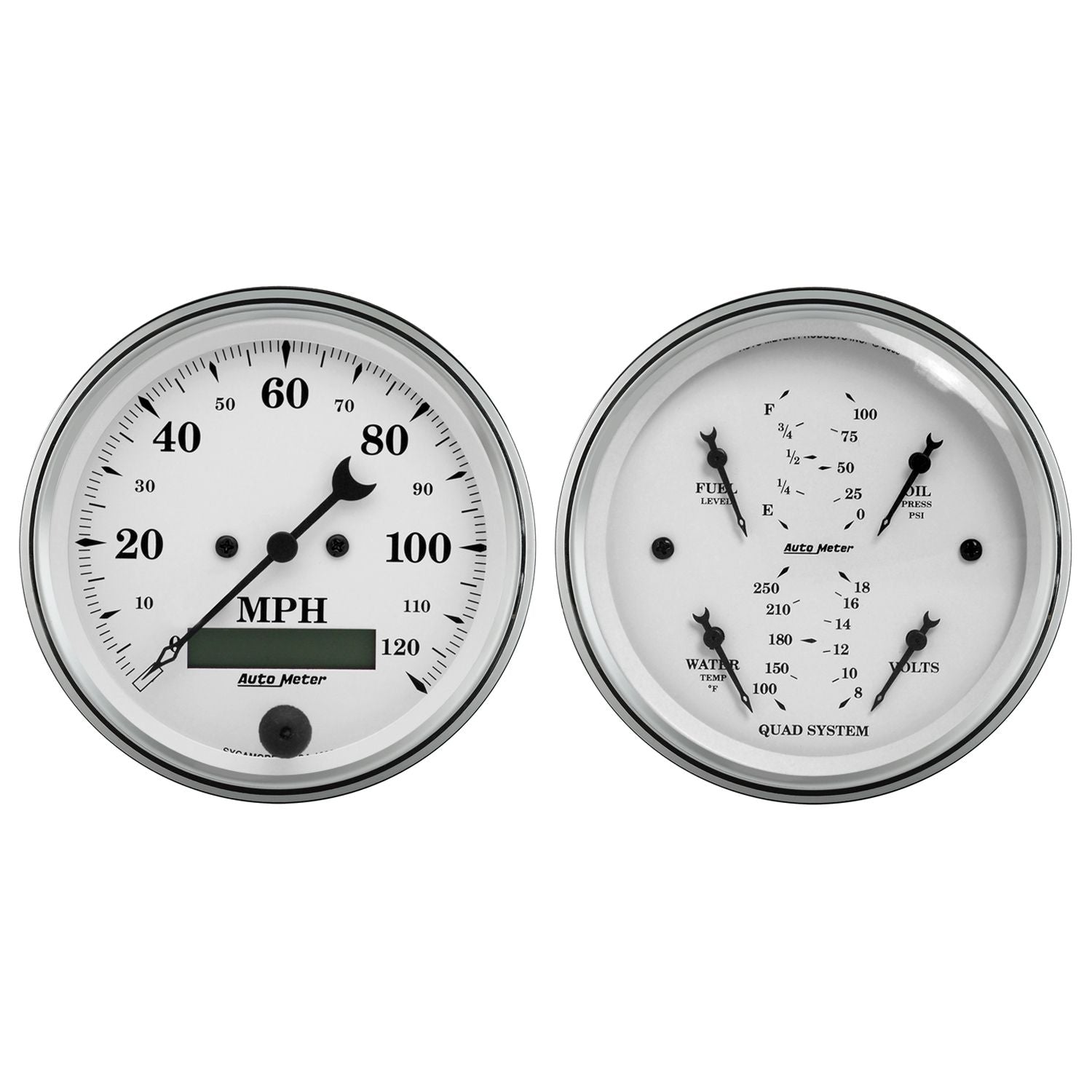

AutoMeter 2 Pc. Gauge Kit 3-3/8 in. Quad & Speedometer 240-33 Ω Old Tyme White - ATM-1600

Gauge Kit, Analog, Old Tyme White, Speedometer, Water Temperature, Fuel Level, Voltmeter, Oil Pressure, Kit

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).

• Traditional incandescent lighting illuminates around the perimeter of the dial
• Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD), sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
• AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
• 12 and 16 volts compatible, compatible with nearly every street car or race car electrical system
• Speedometer has a simple push button, 2-mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
• Speedometer is compatible with most two-wire sine wave and three wire hall effect vehicle speed sensors.
• Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
• 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
• Domed Lens

Ships With

• Includes Sending Unit: Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - 5293 VSS Sensor
• 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, 3/8" NPT and 1/2" NPT adapter fittings.
• Brackets Included

California Residents: Prop 65 WARNING

Attributes:

• Brand Name: AutoMeter
• GTIN: 00046074016004
• Add-On: N/A

Extended Information:

• Country of Origin: United States
• Emissions: CARB Eligible
• Life Cycle Status: Available to order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 8.75 x 17.75 x 4.5 inches
• Weight: 4.5 lb.
