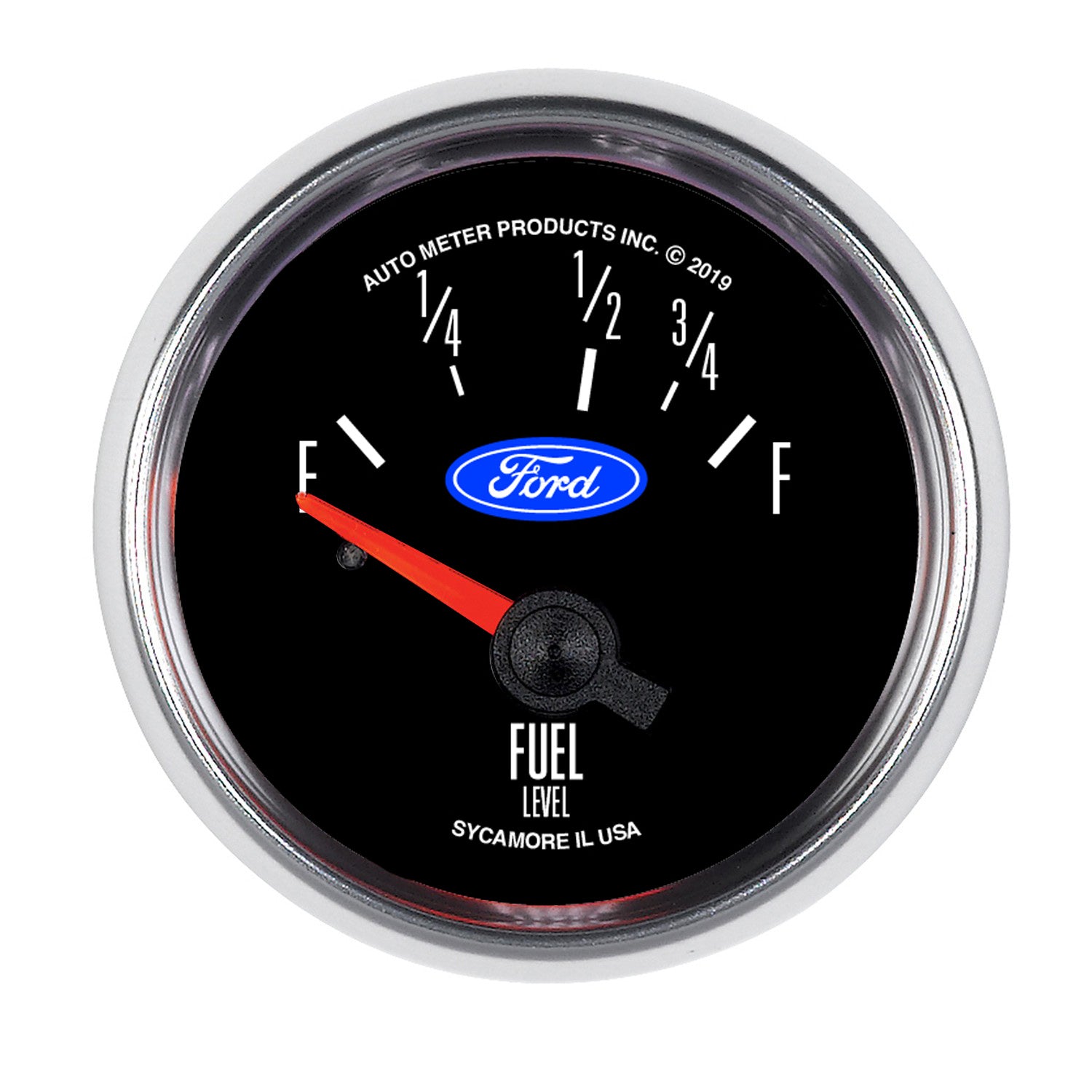

AutoMeter 2-1/16 in. Fuel Level Gauge 73-10 Ω FORD - ATM-880820

Gauge, Fuel Level, 73 Ω Empty / 10 Ω Full, Electric, Ford, 2-1/16 in., Each

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configurations to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

• Modern white LED through-the-dial lighting provides clear visibility during nighttime use
• Air-Core Electric Instruments Provide Quick And Accurate Readings
• Works with most Pre-1989 (Pre-1987 Mustang) Ford and most Chrysler
• 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
• Gauge kit includes mounting hardware and detailed instructions for installation
• AutoMeter's Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings
• Ford Officially Licensed Product
• Modern White LED Through-The-Dial Lighting
• 12 And 16 Volt Compatible
• Incl. Mounting Hardware/Instructions

Attributes:

• Brand Name: AutoMeter
• GTIN: 00046074171567
• Bezel Color: Bright Anodized
• Bezel Style: Super Bezel
• Cup/Hole Size - Metric - MM: 52.4 mm
• Cup/Hole Size - Standard - IN: 2 1/16 in
• Dial Color: Black
• Gauge Type: Fuel Level
• Includes Mounting Hardware: 2230
• Lens Style: Flat, Clear
• Lighting Color: White
• Lighting Type: LED
• Movement: Electric, Air Core
• Outer Bezel Diameter - Standard: 2-1/4in
• Pointer Color: Fluorescent Red
• Product Type: Gauge Fuel Level
• Range: 73 Empty / 10 Full (NON-LINEAR)
• Related Item: 0423XL
• Size - Metric - MM: 52.4 mm
• Size - Standard - IN: 2 1/16 in

Extended Information:

• Country of Origin: United States
• Emissions: CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 4.75 x 4.25 x 4.5 inches
• Weight: 0.5 lb.
