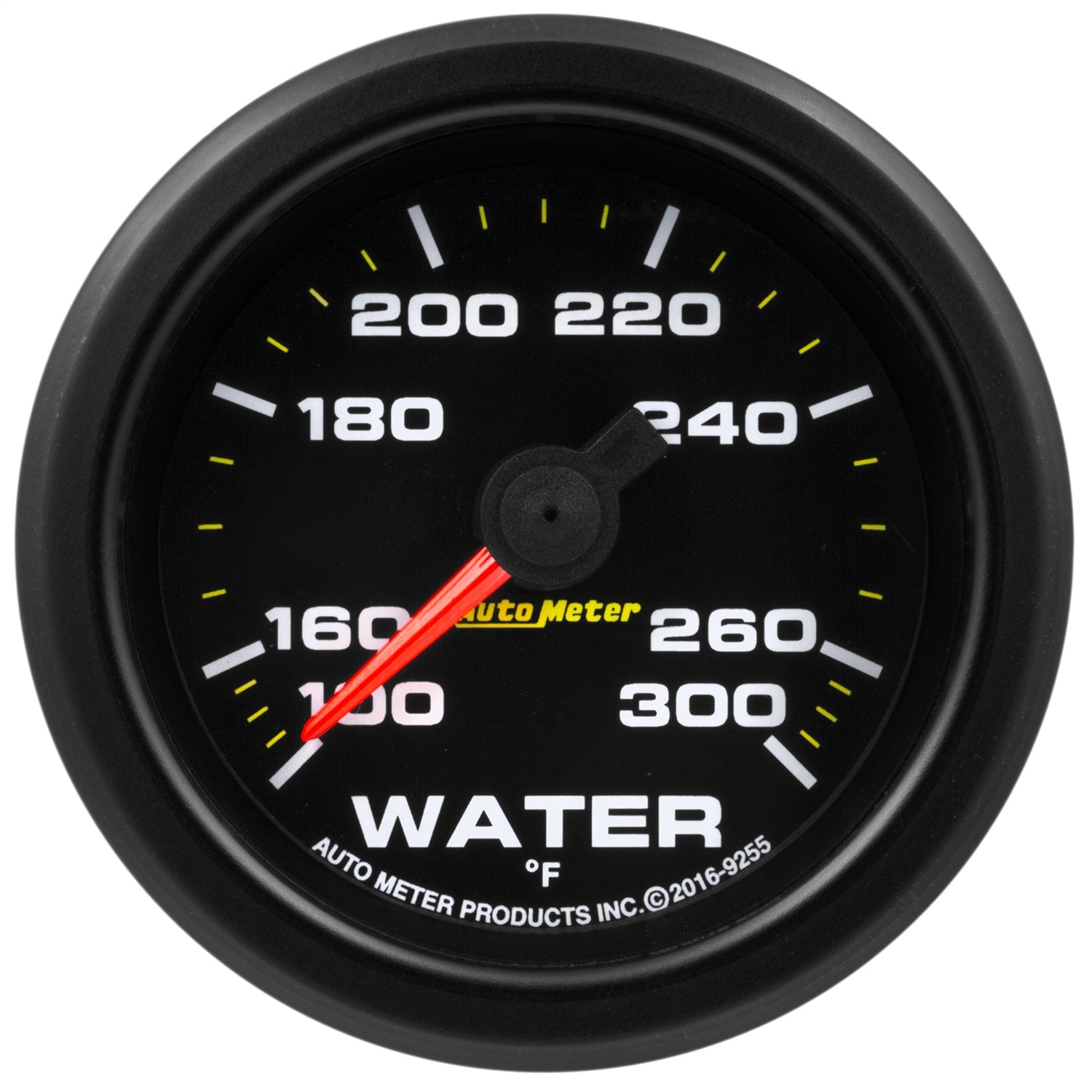

AutoMeter 2-1/16 in. Water Temp Gauge 300°F Extreme Environment w/ Peak & Warn - ATM-9255

Gauge, Extreme Environment Series, Water Temperature, 100-300°F, 2 1/16 in., Waterproof, Black, Analog, Each

Designed for the absolute harshest environments, the AutoMeter Extreme Environment series gauges provide the very best in waterproof sealing. Engines don’t like high water temperatures; Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. Preconfigured warning points change the gauge's LED illumination from white to red, allowing you to concentrate on the work at hand or taking the checkered flag.

• Waterproof Design - Sealed front and rear for protection against the elements in exposed cockpits

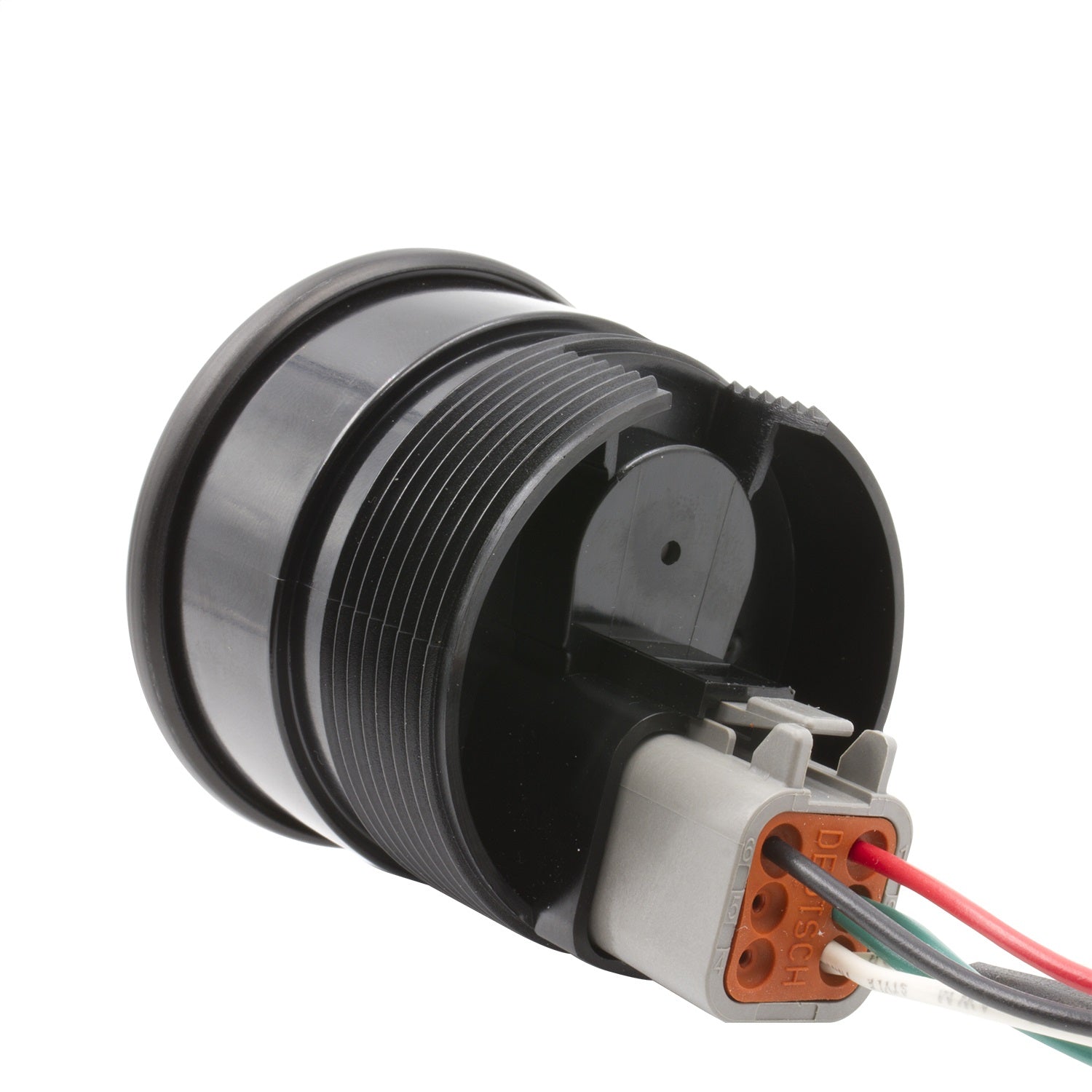

• 6 pin DTM connector at gauge makes for a sealed connection
• Ultra-light weight construction - 70% Lighter than Pro-Comp Liquid Filled 2-5/8" gauges, 60% lighter than Ultra-Lite 2-5/8" Mechanical, 25% lighter than Spek, 10% less than Elite
• Includes Sending Unit: ATM-2252
• IP69K certified
• White through-dial LED lighting with red pre-set full dial warning with solid and blink transitions
• External momentary switch for control of brightness and peak recall
• Stepper motor design with unique multi-scale dial derived from NASCAR tech for optimized resolution and accuracy in critical operating range
• Preset backlight color change warning - 230°F

Attributes:

• Brand Name: AutoMeter
• GTIN: 00046074092558
• Add-On: N/A

Extended Information:

• Country of Origin: United States
• Emissions: CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.5 x 5.5 x 4.75 inches
• Weight: 1 lb.
