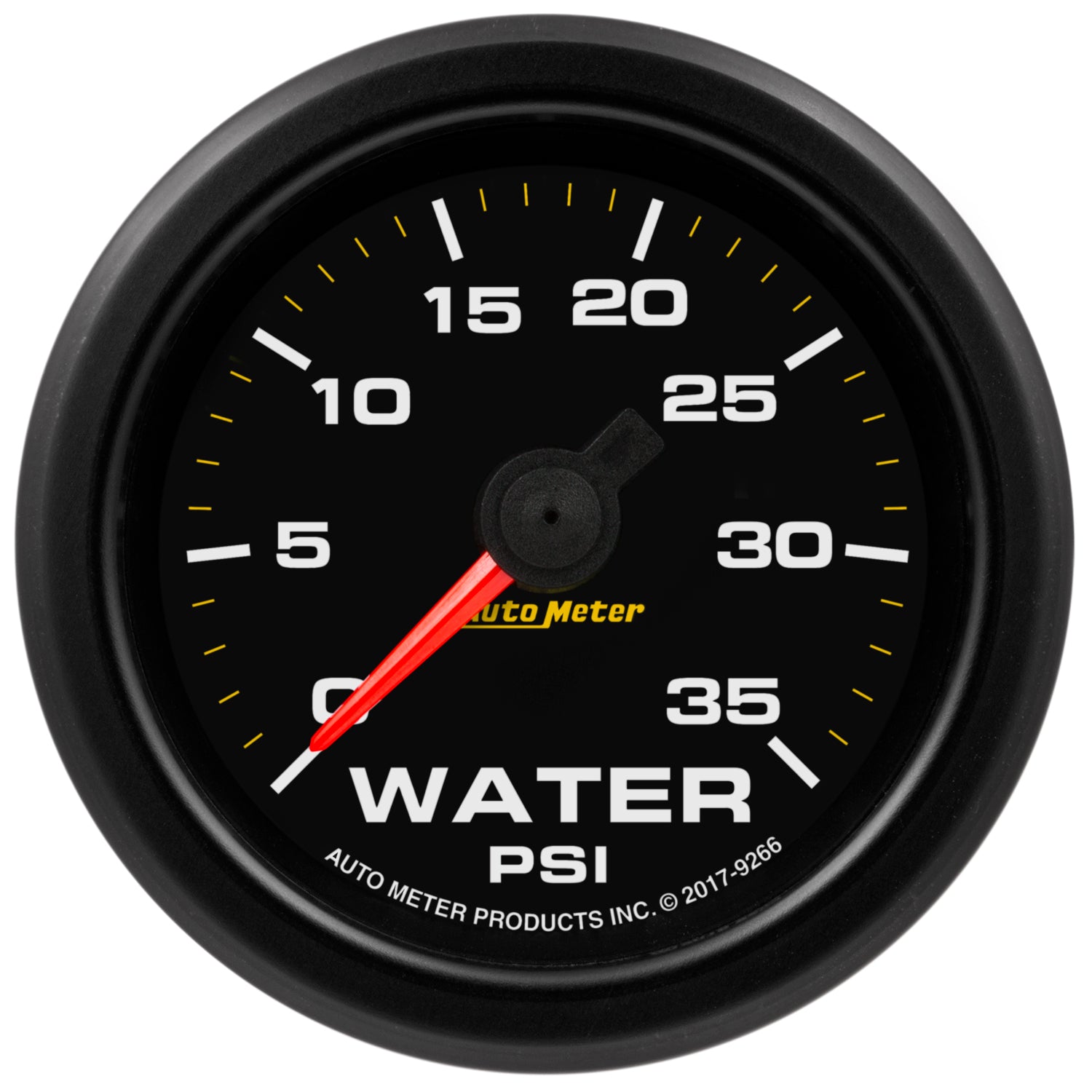

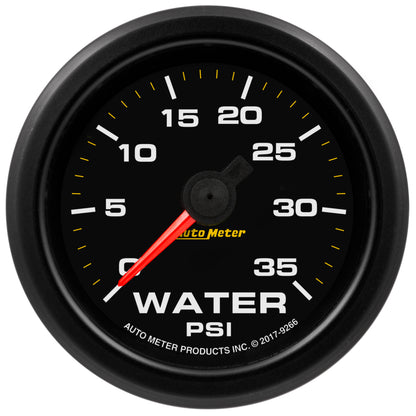

AutoMeter 2-1/16 in. Water Pressure Gauge 0-35 PSI Extreme Environment – ATM-9266

Gauge, Extreme Environment Series, Water Pressure, 0-35 PSI, 2 1/16 in., Black, Waterproof, Analog, Each

Designed for the absolute harshest environments, the AutoMeter Extreme Environment series gauges provide the very best in waterproof sealing. From high banked ovals to Saturday night 1/4 miles, knowing that you’ve got proper cooling system pressure is critical in any severe service application. AutoMeter’s Digital Stepper Motor Water Pressure Gauge utilizes the most advanced technology on the market to deliver accuracy and durability you won’t find anywhere else. Our advanced 1/8” NPT solid state pressure transducer (included) provides the best possible measurements with unparalleled resistance to vibration and heat. Preconfigured warning points change the gauge's LED illumination from white to red, allowing you to concentrate on the work at hand or taking the checkered flag.

• Waterproof Design - Sealed front and rear for protection against the elements in exposed cockpits
• Includes Sending Unit: ATM-2229
• IP69K certified

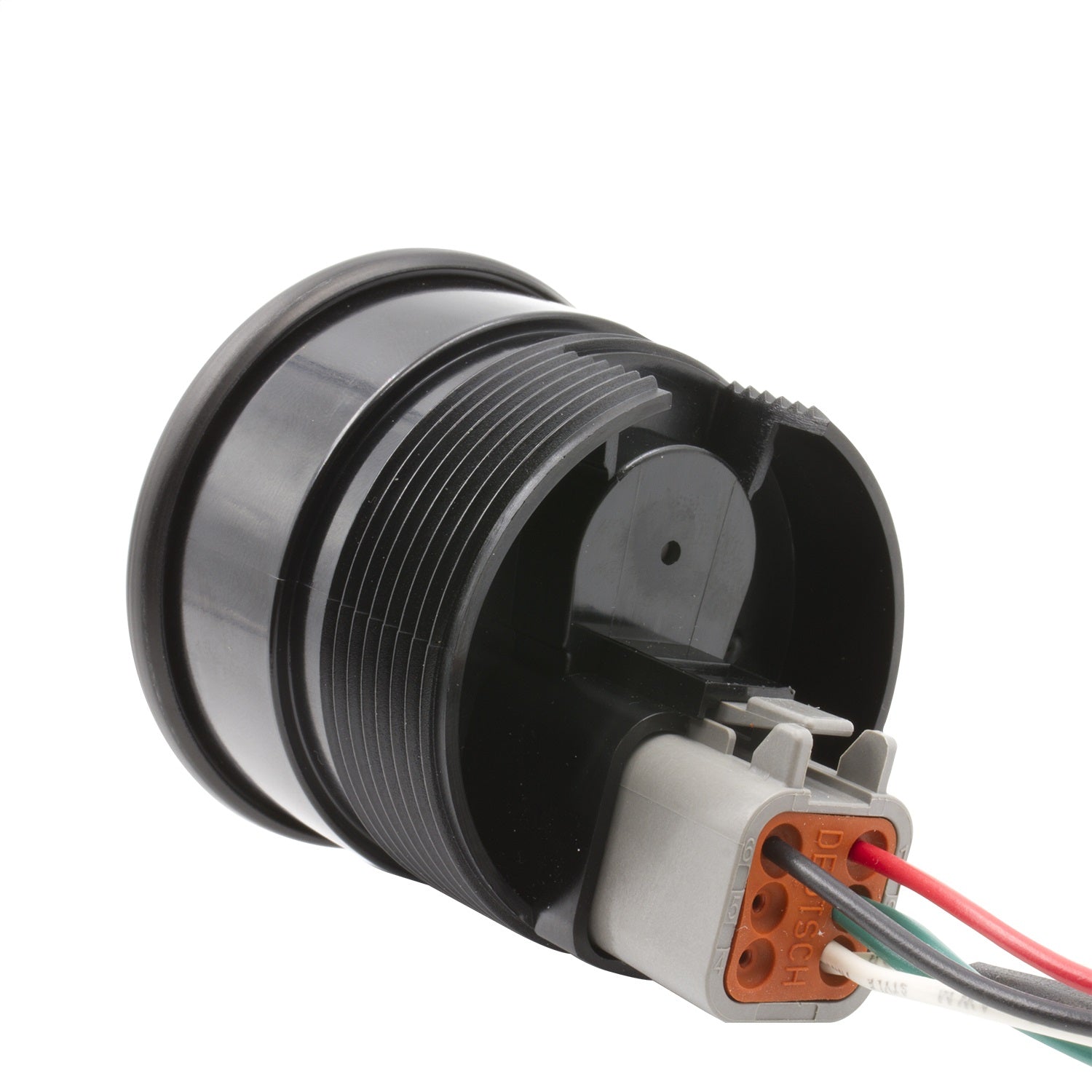

• 6 pin DTM connector at gauge makes for a sealed connection
• Ultra-light weight construction - 70% Lighter than Pro-Comp Liquid Filled 2-5/8" gauges, 60% lighter than Ultra-Lite 2-5/8" Mechanical, 25% lighter than Spek, 10% less than Elite
• White through-dial LED lighting with red pre-set full dial warning with solid and blink transitions
• External momentary switch for control of brightness
• Stepper motor design and dial layout optimized for maximum resolution and accuracy in critical operating range
• Preset backlight color change warning - 4 PSI

Attributes:

• Brand Name: AutoMeter
• GTIN: 00046074092664
• Add-On: N/A

Extended Information:

• Country of Origin: United States
• Emissions: CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.5 x 5.5 x 4.75 inches
• Weight: 1 lb.
