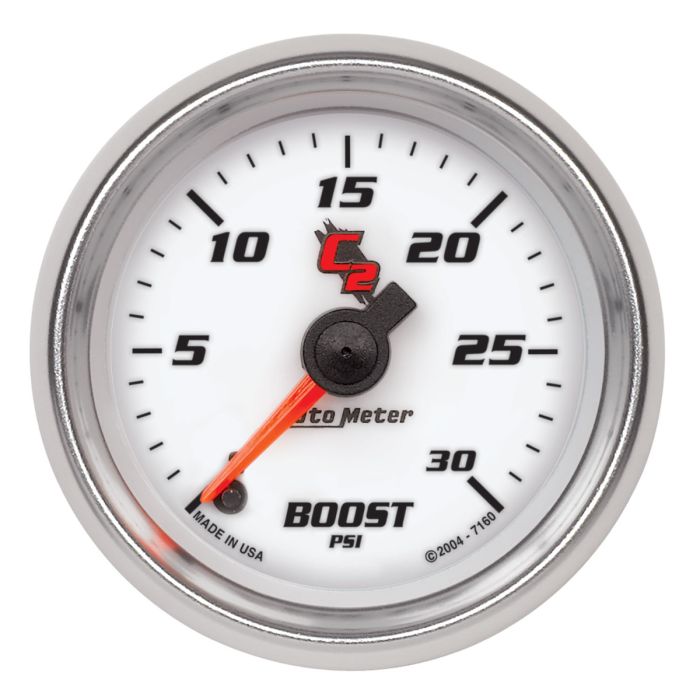

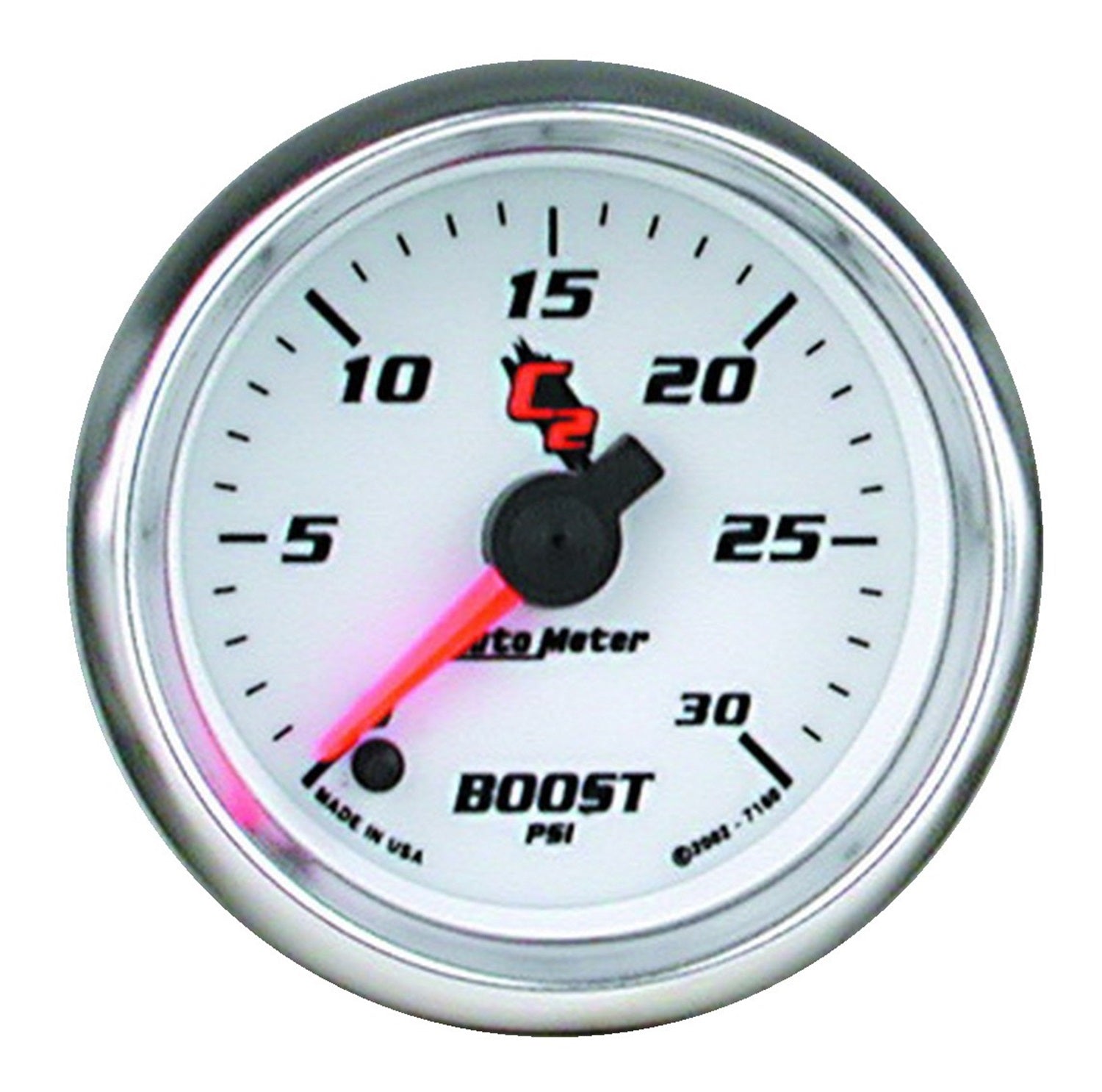

AutoMeter 2-1/16 in. Boost Pressure 0-30 PSI C2 - ATM-7160

Gauge, C2, Boost Pressure, 0-30 psi, 2 1/16 in., Analog, Electrical, Each

Forced induction applications require precise monitoring of the boost pressure being created by your turbo or supercharger to get the most power safely from your engine. AutoMeter’s Digital Stepper Motor Boost Gauge provides the most accurate reading available, unparalleled response time and smooth needle movement. Designed for diesel or extreme boost applications, these gauges include a highly advanced 1/8” NPT Pressure Transducer and wiring harness for ease of installation. Data Logging is also possible thanks to an analog .5 - 4.5v output.

• Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
• Includes data acquisition grade solid-state MAP Sensor, providing unmatched accuracy and durability even in the harshest environments
• AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self-calibration sequence during power up
• 12 and 16 volts compatible, compatible with nearly every street car or race car electrical system
• Gauge kit includes MAP Sensor, T-Fitting, nylon tubing, vacuum fittings, wiring harness, mounting hardware, and detailed instructions for installation

Ships With

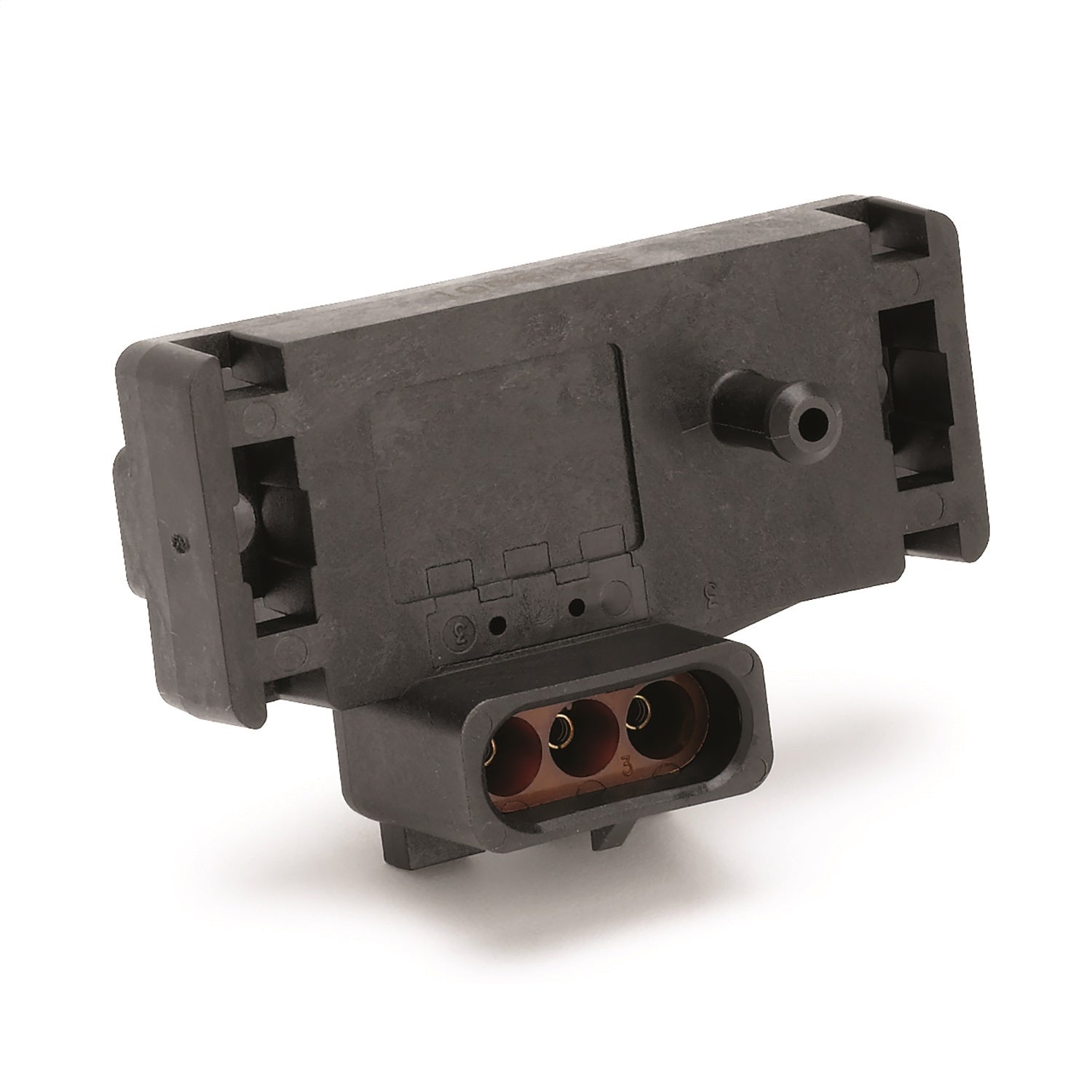

• Includes Sending Unit: 2249
• 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting

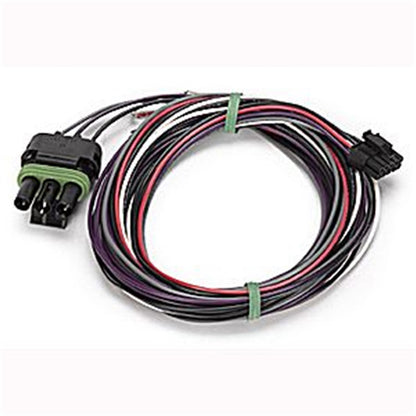

• Wire Harness: 5229
• 2230

California Residents: Prop 65 WARNING

Attributes:

• Brand Name: AutoMeter
• GTIN: 00046074071607
• Add-On: N/A

Extended Information:

• Country of Origin: United States
• Emissions: CARB Eligible
• Life Cycle Status: Available to Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6.25 x 6 x 6.25 inches
• Weight: 1.1 lb.
