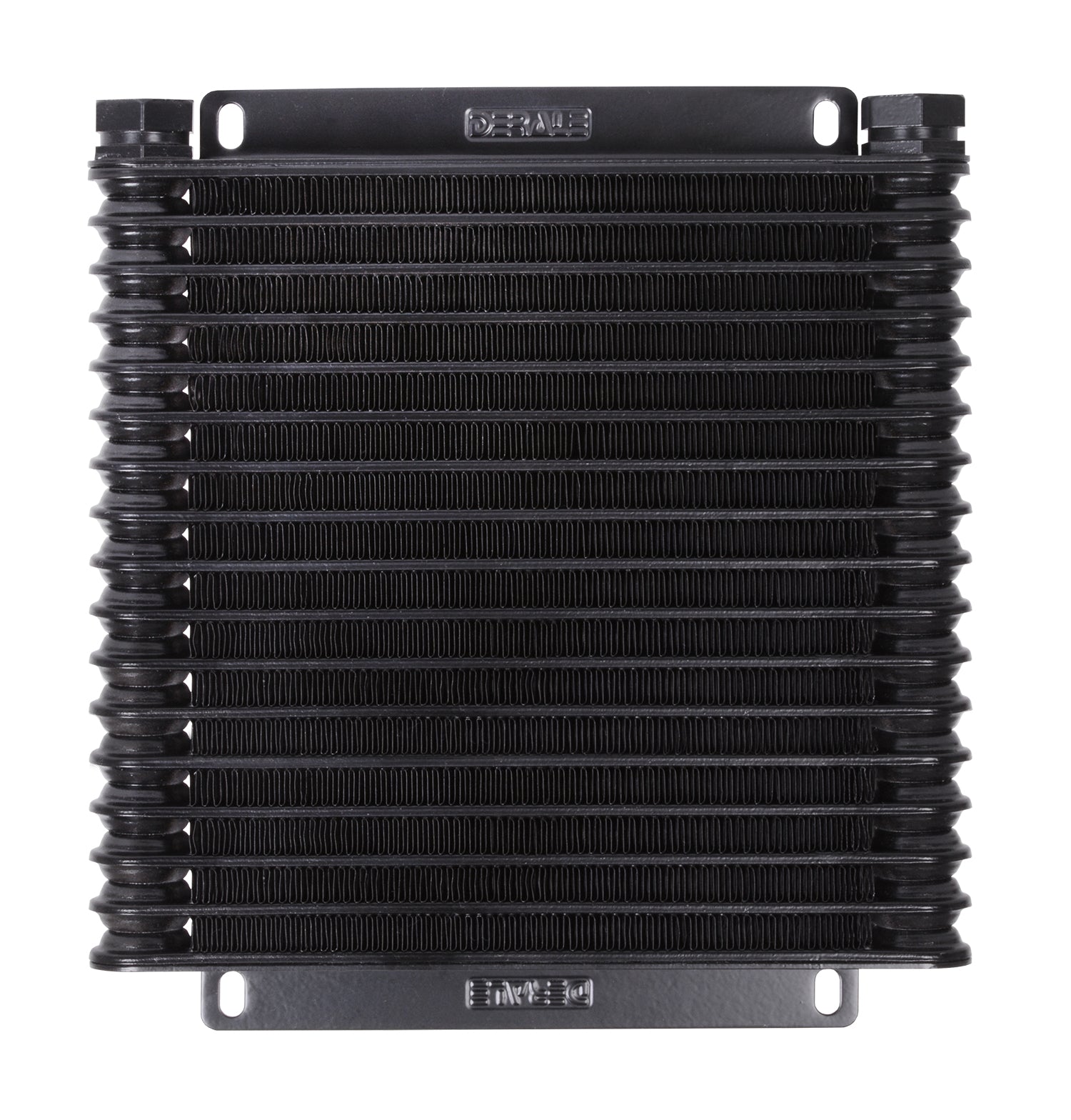

17 Row Series 9000 Plate & Fin Cooler 1/2" NPT

Very popular with original equipment manufacturers for use on their towing applications, our Plate and Fin coolers is no exception, featuring strong furnace-brazed construction, 1 1/4" wide plates and embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 1/2" NPT female cooler ports and includes 1/2" NPT x 3/8" hose barb adapters.

• 17 Row Series 9000 Plate & Fin Cooler, 1/2" NPT

Attributes:

• Brand Name: Derale
• GTIN: 00083277336041
• BTU: 23500
• Color: Black
• Cooler style: Plate & Fin
• Depth: 1-1/4
• Fitting size: 3/8 barb
• GVW: 24000
• Height: 10-5/8
• Inlet dim: 8-1/2
• Inlet size: 1/2 NPT female
• Material: Aluminum
• Mounting: 6-11/16 x 9-13/16
• Width: 9-3/4

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.375 x 11.75 x 2 inches
• Weight: 4.5 lb
