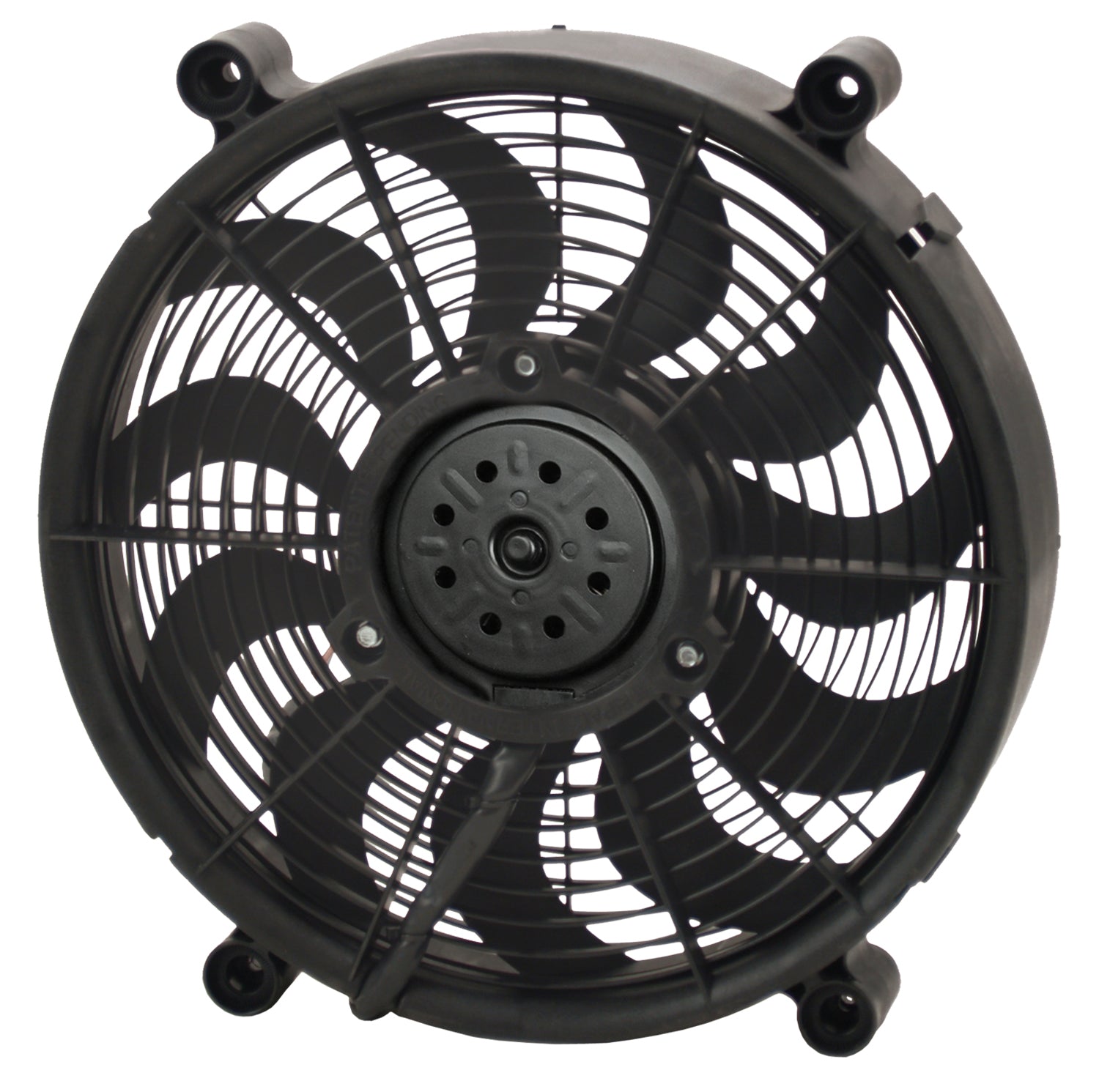

14" High Output Single RAD Pusher/Puller Fan With Standard Mount Kit

A very popular primary cooling fan, this 14" High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades, it can be used as a pusher with the supplied hardware kit. Fan can also be used as puller by combining with a custom built shroud. Moves up to 2100 CFM while drawing up to 22 amps.

• 14" High Output Single RAD Pusher/Puller Fan with Standard Mount Kit

Attributes:

• Brand Name: Derale
• GTIN: 00083277169137
• Amp draw high/low: 22/16.2
• CFM high/low: 2100/1500
• Color: Black
• Depth: 1-5/8
• Height: 14-1/2
• Mounting: 8-3/4 x 13-1/4
• Overall depth: 2-5/8
• Width: 14-1/2

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 19 x 17.25 x 4.5 inches
• Weight: 8.1875 lb
